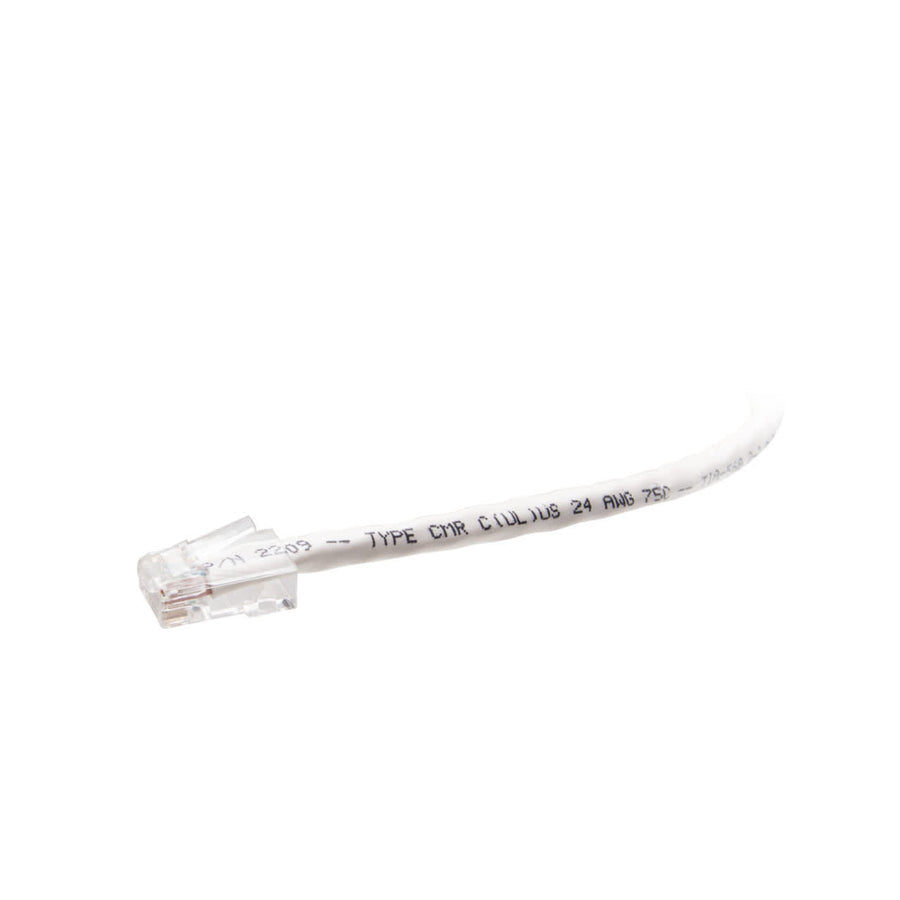

3ft (0.9m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - White
3ft (0.9m) TAA-compliant Cat6 UTP unshielded network cable, white, with RJ-45 male connectors and CMR rating
The C2G43686 is a 3ft (0.9m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This cable is specifically approved for use in United States government projects and facilities due to its TAA compliance. Built with high-quality, made-in-the-USA stranded copper cabling, it provides an enhanced 600 MHz maximum frequency to ensure consistent and reliable performance exceeding standard Cat6 capabilities. The cable features 50-micron gold-plated contacts on the RJ-45 male connectors to maintain signal integrity across 1000BASE-T (1 Gigabit Ethernet) applications. This CMR-rated riser cable is constructed with a PVC jacket and utilizes a T568B wiring scheme. It is suitable for connecting network adapters, hubs, switches, and routers, providing a reliable link for servers and other critical networking hardware. This unshielded twisted pair (UTP) solution is ideal for short-reach patch connections where a streamlined, non-booted profile is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436867 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43686 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, making it approved for United States government projects and facilities.
What is the maximum frequency and performance of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does this cable have?
The C2G43686 features a CMR-rated riser jacket made of PVC material.
Does this cable support 1 Gigabit Ethernet?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T 1 Gigabit Ethernet applications.
What is the connector type for this C2G cable?
This cable is equipped with (1) RJ-45 male connector on each end using a T568B wiring scheme.
