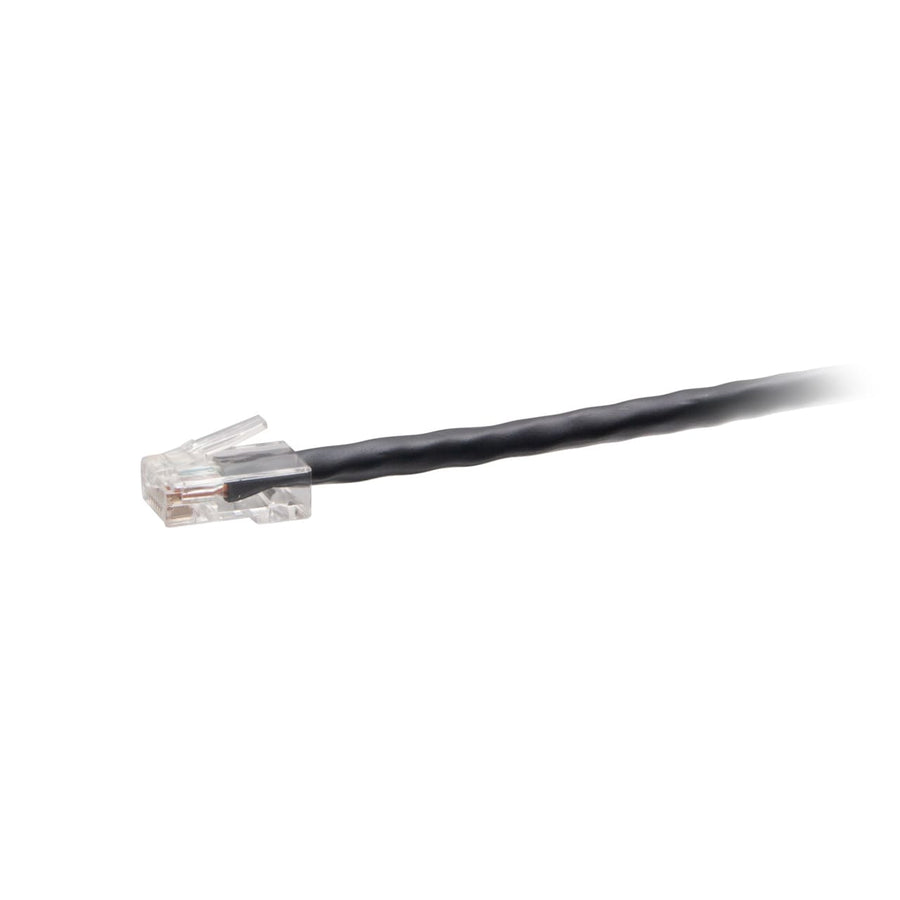

3ft (0.9m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
3ft Cat6 UTP network cable, TAA-compliant, featuring 24 AWG stranded copper conductors and a black PVC jacket
The C2G43626 is a 3ft (0.9m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable designed for high-performance connectivity in sensitive environments. This non-booted cable is built for use with network adapters, hubs, switches, routers, and servers. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. For consistent and reliable signal integrity, the cable features 50-micron gold-plated RJ-45 male contacts and uses high-quality, made in the USA stranded copper conductors. This specific SKU is configured with a T568B wiring scheme and a CMR rated PVC jacket, making it suitable for riser applications. Because it is TAA compliant, this cable is approved for use in United States government projects and facilities. This black cable measures 0.22 in (5.6 mm) in diameter and is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436263 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43626 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6 cable?
The cable is rated for an operating temperature range of -4°F to 167°F (-20°C to 75°C).
What is the wiring scheme for the C2G43626?
This network cable is terminated using the T568B wiring scheme on both RJ-45 male connectors.
What can I use this cable for in a network rack?
It is suitable for connecting network adapters, hubs, switches, and routers, and is compatible with 24-port or 48-port Cat6 110-type patch panels.
Does this cable support Gigabit Ethernet?
Yes, this Cat6 cable meets ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
