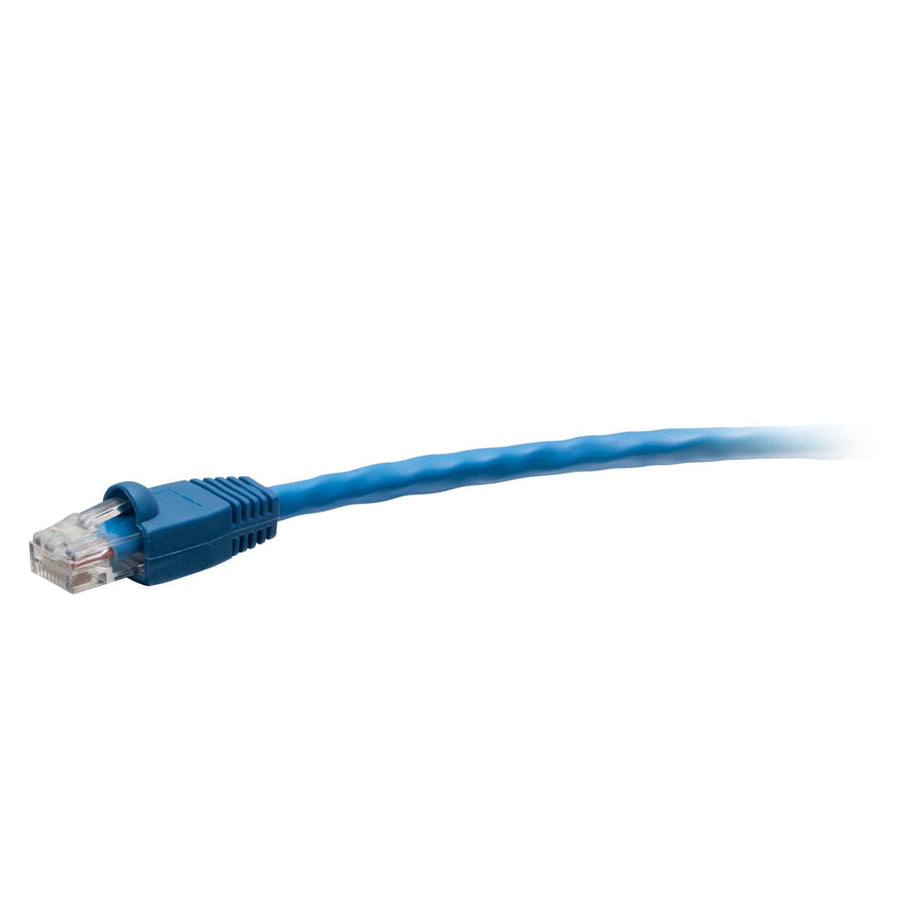

3ft (0.9m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
3ft (0.9m) TAA-Compliant Cat5e Snagless UTP Network Cable in Blue, featuring stranded copper conductors and CMR jacket rating
The C2G43410 is a 3 ft (0.9 m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable in blue. Specifically designed to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. It features high-quality, made in the USA raw copper cabling that provides an enhanced 350 MHz maximum frequency for more consistent and reliable performance compared to standard Cat5e options. The cable utilizes a snagless RJ-45 connector design with 50-micron gold-plated contacts to protect the clips from snapping and to improve signal integrity. Built with 24 AWG stranded copper conductors and a CMR rated PVC jacket, this passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications. It is suitable for connecting network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434108 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
Questions about this part
Is the C2G43410 TAA compliant for government use?
Yes, this is a TAA-Compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat5e cable?
This cable provides an enhanced 350 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between this and other C2G network cables?
This SKU is part of the F-Series and features a snagless boot to protect clips and is specifically TAA-compliant.
What type of jacket rating does this cable have?
The C2G43410 features a CMR rated PVC jacket, making it suitable for riser applications.
What do I need for a submittal regarding this cable?
You can refer to the TAA Compliant F-Series Cat5e Snagless Unshielded Network Cable PDF document for detailed compliance information.
