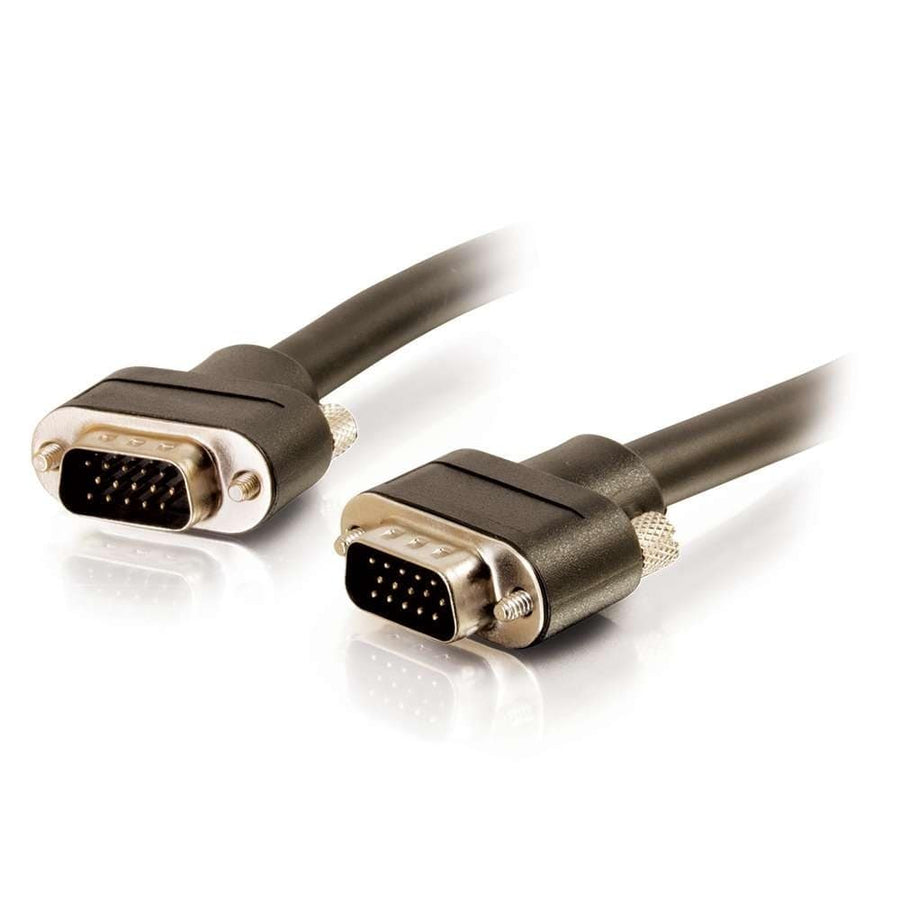

3ft (0.9m) Select VGA Video Cable M/M - In-Wall CMG-Rated
3 ft (0.9 m) in-wall rated VGA male to male cable supporting resolutions up to QXGA (2048x1536)
The CG50211 is a 3 ft (0.9 m) VGA male to male video cable designed for source-to-display connectivity in residential or commercial environments. This cable features a CMG-rated and FT4-rated PVC jacket, making it suitable for in-wall installations. It is engineered to support high-resolution video applications, providing output up to QXGA (2048x1536) resolution. To ensure optimal signal integrity, all 15 pins are wired, supporting DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals. This allows the source to communicate effectively with the display's specific capabilities for correct resolution settings. The low-profile, rounded connectors are designed to simplify installation in restricted spaces, such as projector mount poles or tight wall plates. This 0.33 in (8.5 mm) diameter cable is built for reliability in fixed installations requiring a secure VGA connection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502111 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Can the CG50211 be used for in-wall installations?
Yes, this cable features a CMG-rated and FT4-rated PVC jacket specifically for in-wall applications.
What is the maximum resolution supported by the CG50211?
The cable supports video resolutions up to QXGA (2048x1536) through fully wired 15-pin connectivity.
Will this cable support EDID communication between my source and display?
Yes, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals.
Is this cable suitable for tight spaces like projector mounts?
The CG50211 utilizes low-profile, rounded connectors to facilitate easier installation in confined areas like projector mount poles.
How long is the CG50211 VGA cable?
This specific SKU is a 3 ft (0.9 m) length cable with a 0.33 in (8.5 mm) diameter.
