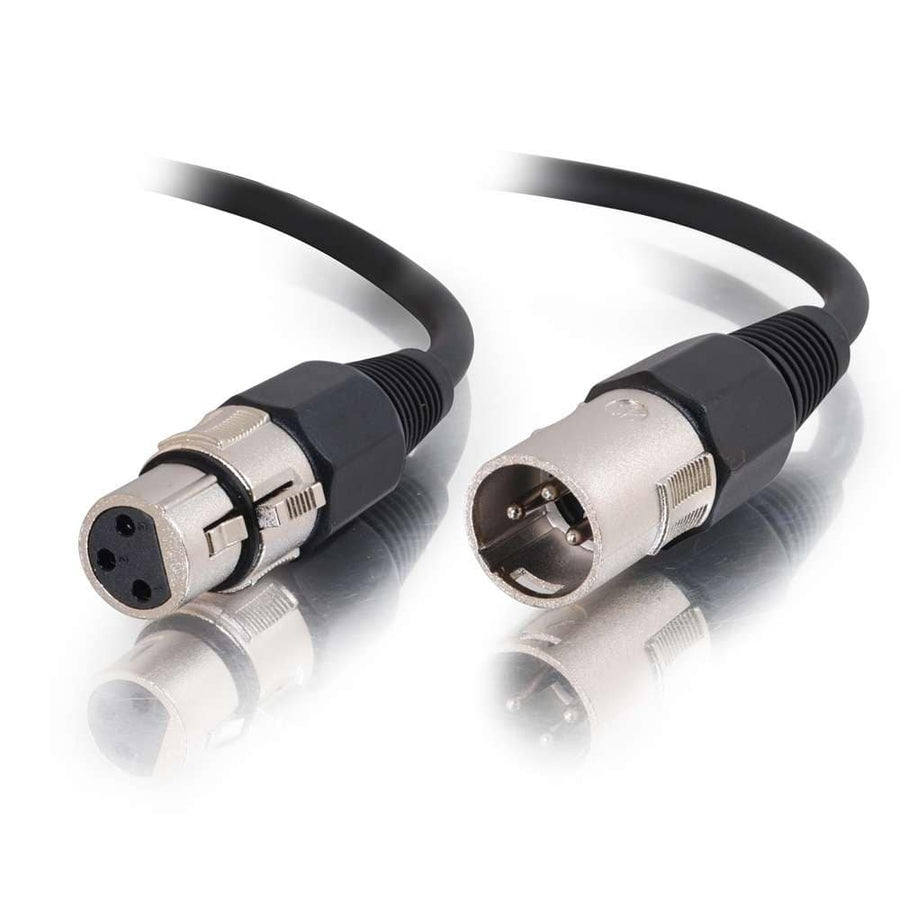

3ft (0.9m) Pro-Audio XLR Male to XLR Female Cable
3 ft (0.9 m) pro-audio XLR male to female cable with 22 AWG conductors and dual-layer shielding
The C2G CG40058 is a 3 ft (0.9 m) pro-audio XLR male to XLR female cable designed to connect unbalanced sources to balanced XLR inputs. This cable utilizes 22 AWG twisted pair conductors protected by both an aluminum foil shield and a 60% copper braid to provide maximum shielding against electromagnetic interference and noise. The cable features a highly flexible 0.24 in (6 mm) PVC jacket, which helps reduce the risk of kinking and protects the internal conductors from damage during use. For durability in mobile environments, the solid brass connectors feature bright nickel plating to resist wear from frequent reconfiguration. To protect the integrity of the signal over time, the assembly includes a chuck strain relief inside the XLR and a spring strain relief on the plug to reduce stress on the solder joints and contacts. This cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 12
| Wire Gauge | 22 |
| Cable Type | AudioXLR |
| Color | Black |
| Connector 1 | (1) XLR 3-pin Male(1) XLR 3-pin Male |
| Connector 2 | (1) XLR 3-pin Female(1) XLR 3-pin Female |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400585 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the length of the C2G CG40058 cable?
This is a 3 ft (0.9 m) cable. Other lengths in this series include 5 ft, 6 ft, 12 ft, and 25 ft.
What type of shielding does this XLR cable use?
The CG40058 uses both an aluminum foil shield and a 60% copper braid to protect against signal interference.
What is the wire gauge for this audio cable?
This pro-audio cable is constructed with 22 AWG twisted pair conductors.
Will this cable work in high-temperature environments?
Yes, the operating temperature range for this cable is -4°F (-20°C) to 176°F (80°C).
Does this cable include a warranty?
Yes, this C2G XLR cable is covered by a Lifetime warranty.
