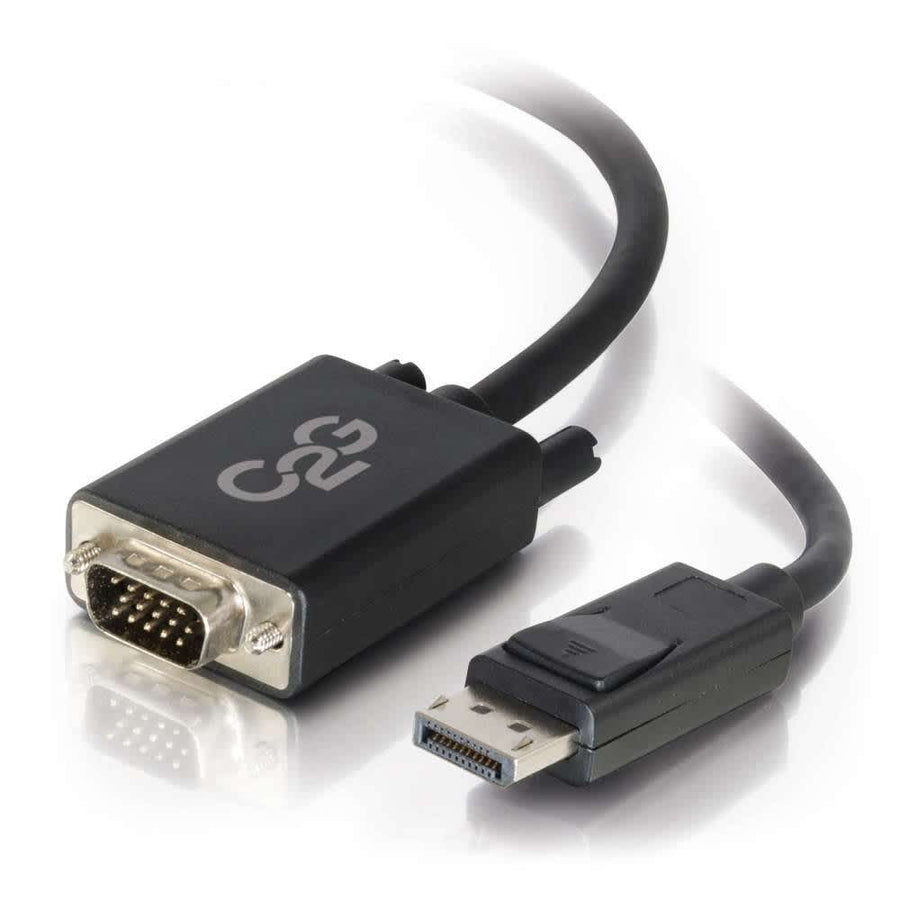

3ft (0.9m) DisplayPort™ Male to VGA Male Active Adapter Cable - Black
3 ft (0.9 m) active DisplayPort Male to VGA Male adapter cable for connecting digital sources to analog displays
The C2G CG54331 is a 3 ft (0.9 m) active adapter cable designed to bridge the connection between a DisplayPort Male source and a VGA Male display. This active conversion is required to translate digital signals into the analog format used by VGA interfaces. With a cable diameter of 6.5 mm, the assembly is suitable for various routing requirements in professional AV environments. The cable operates within a temperature range of 0°C to 50°C, making it reliable for standard indoor installations. For users requiring a longer connection, the CG54332 is the 6 ft (1.8 m) version within this same product series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 3 ft (0.9 m) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Cable Type | DisplayPortVGA |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) VGA Male |
| TAA Compliant | No |
| UPC | 757120543312 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
| Cable Diameter | 6.5 mm |
You'll need these with it

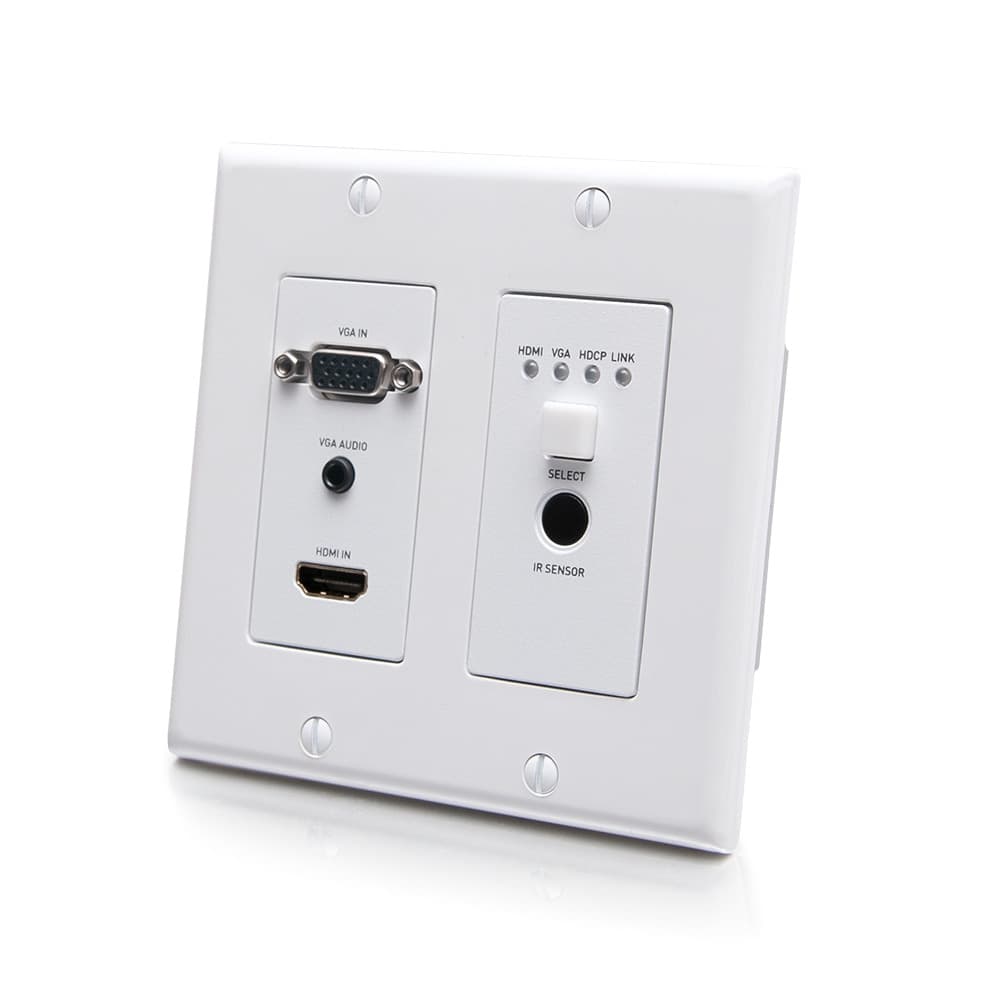

HDMI HDBaseT + VGA, 3.5mm, RS232, and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz
C2G30017$140.99
6ft (1.8m) DB9 M/F Serial RS232 Extension Cable - Black
CG52030$10.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Hook-and-Loop Cable Wrap Multipack - 50 Pack- Black
CG43231$127.99
6ft (1.8m) DisplayPort™ Male to VGA Male Active Adapter Cable - Black
CG54332$51.99
HDMI, VGA plus 3.5mm Pass Through Single Gang Wall Plate - Aluminum
CG60144$105.99
HDMI, VGA and 3.5mm Audio Pass Through Wall Plate - White
CG41031Discontinued
Questions about this part
Will this CG54331 cable work to connect a DisplayPort computer to a VGA monitor?
Yes, this is an active adapter cable that converts a DisplayPort Male signal to a VGA Male output, allowing digital sources to drive analog VGA monitors.
What is the difference between the CG54331 and the CG54332?
The CG54331 is the 3 ft (0.9 m) version, while the CG54332 is the 6 ft (1.8 m) version of this same active adapter cable.
Is there a longer version of this adapter available?
Yes, the CG54332 provides a 6 ft (1.8 m) length for applications requiring more reach than the standard 3 ft (0.9 m) CG54331.
What is the operating temperature range for this cable?
This cable is rated for operation in temperatures ranging from 0°C to 50°C.
Does this cable require any additional components to function?
This is an active adapter cable that performs the necessary signal conversion internally; it does not require external power or additional components to convert DisplayPort to VGA.
