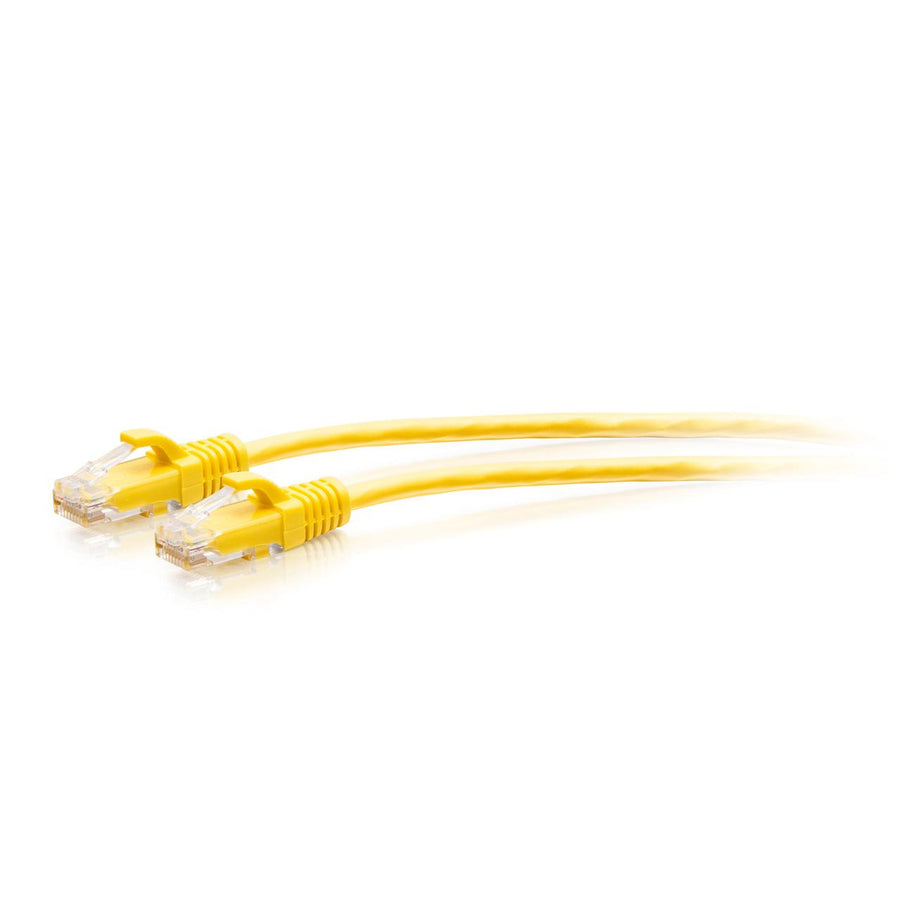

3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Yellow
3ft Cat6a slim unshielded UTP patch cable, 28AWG construction, 10Gbps data rate, yellow finish
The C2G30168 is a 3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in yellow, engineered specifically for high-density cabling environments. Designed for applications like large conference rooms and datacenters, this cable utilizes 28AWG stranded copper conductors to achieve a reduced cable diameter of 0.19 in (4.8 mm). This slim profile increases airflow in crowded enclosures and provides the flexibility required for tight-space installations. The cable supports data transfer rates of up to 10 Gbps, making it a reliable choice for high-bandwidth applications such as HDBaseT, VoIP, or Power over Ethernet (PoE) deployments. Each RJ-45 male connector features a molded, snagless PVC boot to provide strain relief and prevent damage to the jacket during installation. This series meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, ensuring reliable connectivity for mission-critical network infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301684 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20 Inch Enclosure with Hinged Door
EN2050$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
What is the data transfer speed for the C2G30168?
The C2G30168 supports data transfer rates up to 10 Gbps, making it suitable for high-bandwidth applications like HDBaseT.
Will this slim cable fit in high-density enclosures?
Yes, the 28AWG construction provides a slim 0.19 in (4.8 mm) diameter, which increases airflow and provides flexibility in tight spaces.
What is the connector type on this patch cable?
This cable features RJ-45 male connectors with a snagless, booted design and PVC hoods for enhanced strain relief.
What certifications does this cable have?
This cable is compliant with RoHS, REACH, CE, and TAA/NDAA 889 standards.
Does this cable support PoE?
The Cat6a technology used in this cable is designed to handle the requirements of Power over Ethernet (PoE) and VoIP applications.
