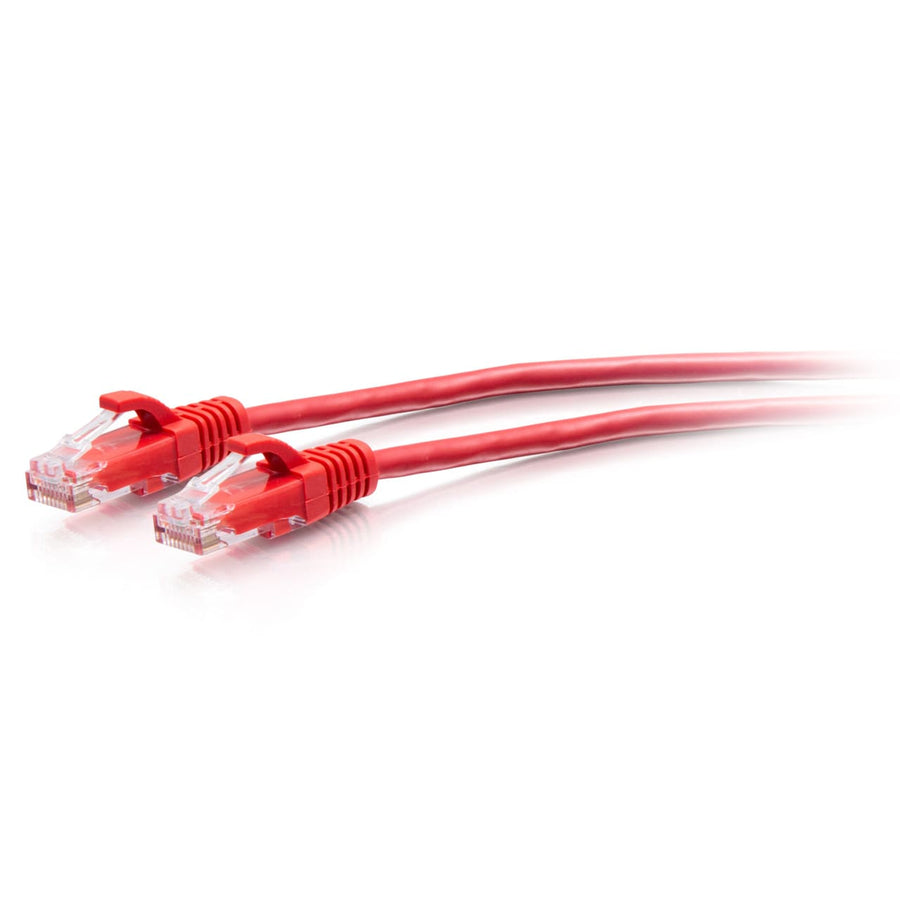

3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Red
Red 3ft Cat6a slim UTP patch cable with 28AWG construction for high-density applications and 10Gbps performance
The C2G30161 is a 3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in red, engineered specifically for high-density cabling environments. This cable is an efficient solution for datacenters and large conference rooms where space is limited. Utilizing 28AWG stranded copper conductors, this slim cable features a reduced 0.19 in (4.8 mm) diameter, which increases airflow in crowded racks compared to standard Cat6 cables. The slim profile also provides greater flexibility for tight space installations. Each cable features RJ-45 male connectors with gold-plated contacts and a PVC snagless boot to provide strain relief and prevent accidental disconnections during installation. This Cat6a technology supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. It is also suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301615 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
What is the maximum data speed for the C2G30161?
The C2G30161 supports data transfer rates up to 10 GBPS, meeting Cat6a performance standards.
How much space does this slim cable save in a rack?
With a 0.19 in (4.8 mm) diameter and 28AWG construction, this slim cable offers a smaller surface area for increased airflow in high-density installations.
Will this cable work for PoE or VoIP applications?
Yes, this Cat6a cable is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.
What is the difference between the snagless boot and standard boots?
The molded snagless boot on the C2G30161 protects the connector and provides extra strain relief while preventing the cable from snagging during installation.
What certifications does this red patch cable hold?
This cable is rated for CE, RoHS, REACH, TAA, Prop 65, NDAA 889, and TSCA compliance.
