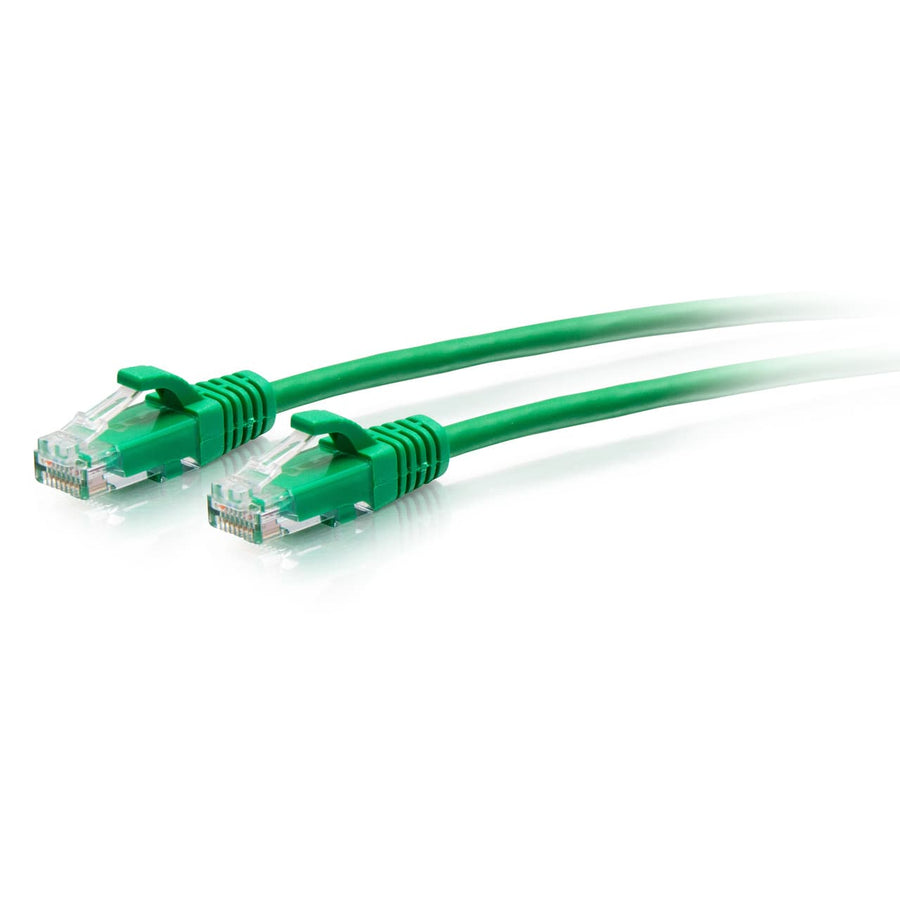

3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Green
3ft Green Cat6a Slim UTP patch cable with 28AWG conductors and snagless boots for high-density environments
The C2G30154 is a 3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in Green, engineered specifically for high-density cabling environments. This cable is designed for tight spaces such as datacenters and large conference rooms where airflow and cable management are critical. Featuring 28AWG stranded copper conductors, the slim 0.19 in (4.8 mm) diameter significantly reduces the cable surface area compared to standard Cat6 cables, facilitating improved airflow in crowded enclosures. This SKU provides data transfer rates up to 10 GBPS and is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. The molded, snagless PVC boots provide additional strain relief and prevent accidental snags during installation. This patch cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301547 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cable Management Strap - 12 Piece
TW12$25.20
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
Will this C2G30154 cable work for PoE or VoIP setups?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
What is the maximum data rate for this Cat6a patch cable?
The C2G30154 supports data transfer rates of up to 10 GBPS.
How does the slim diameter of this cable benefit my installation?
The 0.19 in (4.8 mm) cable diameter provides a smaller surface area than standard Cat6, which allows for increased airflow in high-density spaces like datacenters.
What electrical standards does this cable meet?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Does this cable come with a warranty?
Yes, this C2G patch cable is covered by a lifetime warranty.
