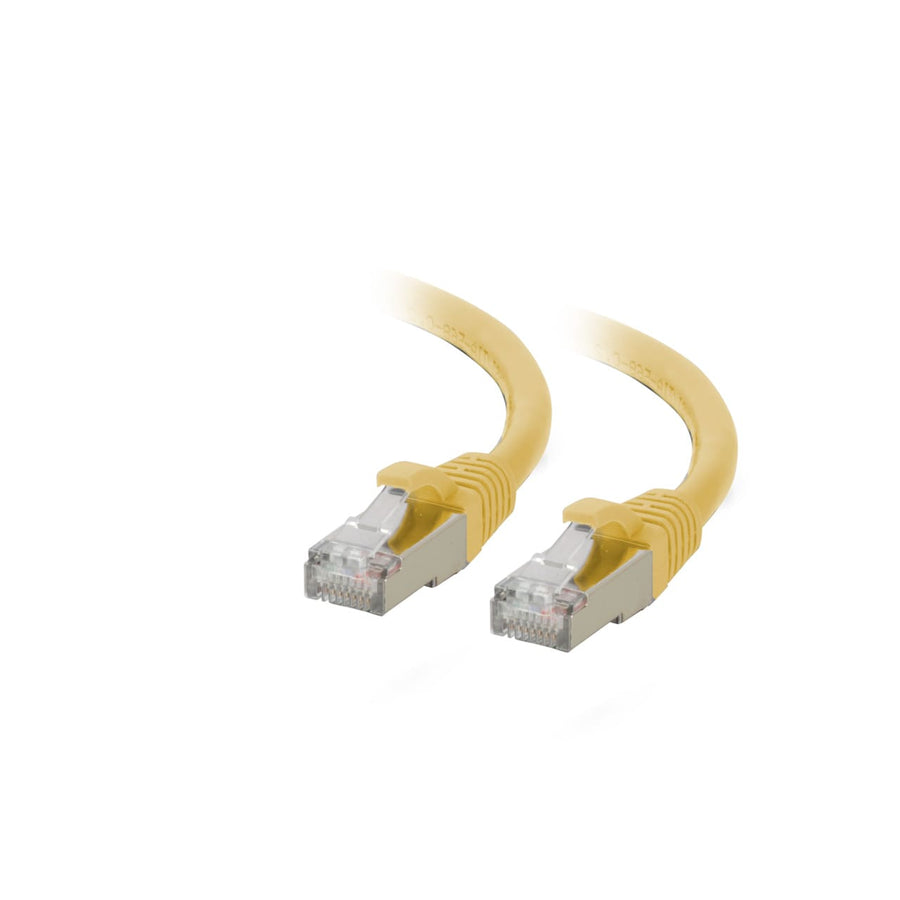

3ft (0.9m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
Yellow Cat6A STP patch cable, 3 ft (0.9 m) length, supporting 10 Gbps data transfer with snagless connectors
The C2G07373 is a 3 ft (0.9 m) Cat6A shielded STP Ethernet patch cable designed to support high-speed 10 Gbps data transfer rates. This yellow cable is engineered for bandwidth-intensive applications, helping to reduce impedance and structural return loss (SRL) while protecting network connections from noise and electromagnetic interference. It is suitable for use with 10GBase-T ports and equipment including network adapters, hubs, switches, routers, and patch panels. Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements. The construction features 26 AWG stranded copper conductors with 50 µ in gold plating on the RJ-45 male connectors. To support high-density environments, the snagless, booted connector design protects the RJ-45 lock from damage. Each cable includes an individual length label for easy identification during installation. This cable operates in temperatures from -4°F (-20°C) to 176°F (80°C) and supports a bandwidth of 500 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073734 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Is the C2G07373 suitable for 10GbE networks?
Yes, this Cat6a cable is designed for 10 Gbps data transfer and is ideal for use with 10GBase-T equipment like switches, routers, and hubs.
What is the maximum temperature range for this cable?
This cable is rated for operating temperatures ranging from -4°F (-20°C) up to 176°F (80°C).
Will the snagless boot protect the connector in a crowded rack?
Yes, the snagless, booted RJ-45 male connectors are specifically designed to protect the connector's lock in high-density installation environments.
Does this cable help prevent crosstalk in shielded environments?
Yes, the shielded STP construction and bonded pair design work to minimize Near-End Crosstalk (NEXT) and protect against electromagnetic interference.
What standards does this Cat6a cable meet?
Each cable is fully tested to comply with ANSI/TIA 568-C.2 Cat6a component requirements.
