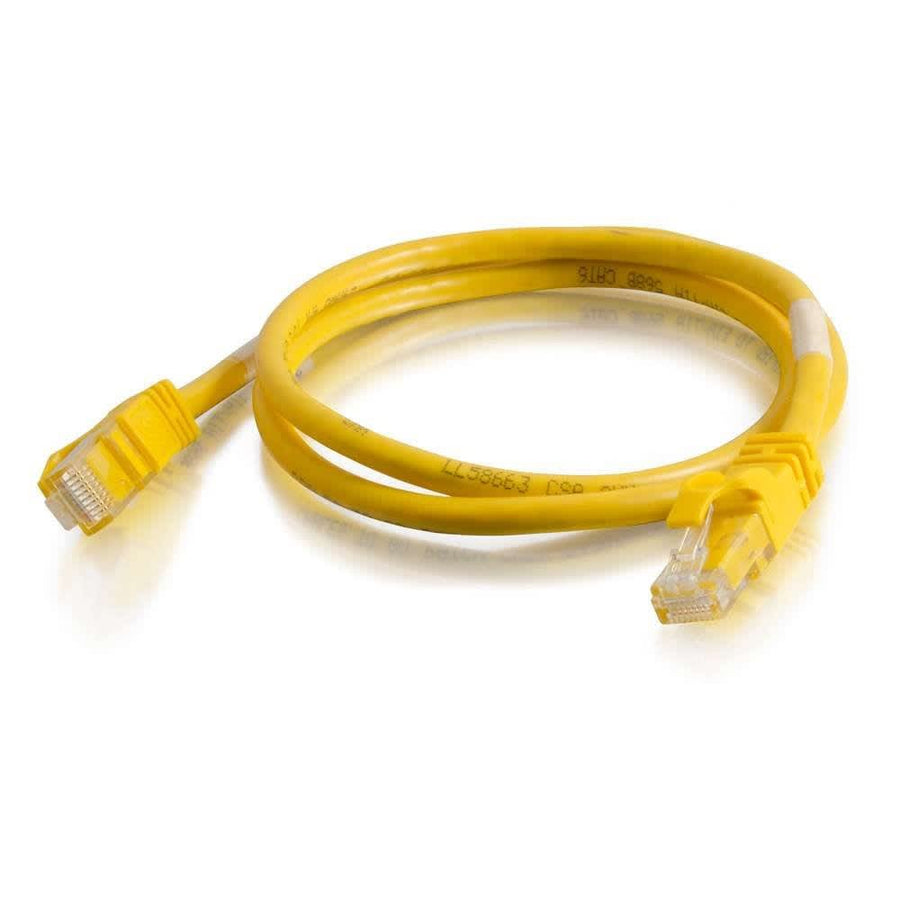

3ft (0.9m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Yellow
3ft (0.9m) Cat6 yellow crossover patch cable for peer-to-peer computer or switch-to-switch connections
The CG27871 is a 3ft (0.9m) Cat6 Unshielded UTP Network Crossover Patch Cable in yellow. This cable is specifically designed for peer-to-peer connections, allowing two computers to share files or data directly without the need for a hub or switch. It also serves as a solution for connecting network switches and hubs that lack an uplink port to other network devices. This crossover cable features a crossed pin configuration to facilitate these direct connections and is fully tested to meet all TIA/EIA Cat6 standards. Built with copper stranded conductors and a 24 AWG wire gauge, the cable is engineered to reduce impedance and structural return loss (SRL) for error-free data transmission. The snagless design features a PVC connector hood to protect the clips from damage during installation and removal while providing strain relief. This cable supports Gigabit Ethernet speeds and operates within a temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278719 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG27871 crossover cable?
The CG27871 is used for peer-to-peer connections between two computers to share data or for linking switches that do not have uplink ports.
Does the CG27871 support Gigabit Ethernet?
Yes, this Cat6 cable provides the necessary throughput to handle Gigabit Ethernet speeds.
What is the difference between the CG27871 and the CG27861?
The CG27871 is the yellow version, whereas the suggested replacement, CG27861, is red.
Is this cable shielded?
No, this is an Unshielded Twisted Pair (UTP) cable with a PVC jacket.
What are the operating temperature limits for this cable?
This cable is rated for operating temperatures between -4°F and 176°F (-20°C to 80°C).
