3ft (0.9m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Red

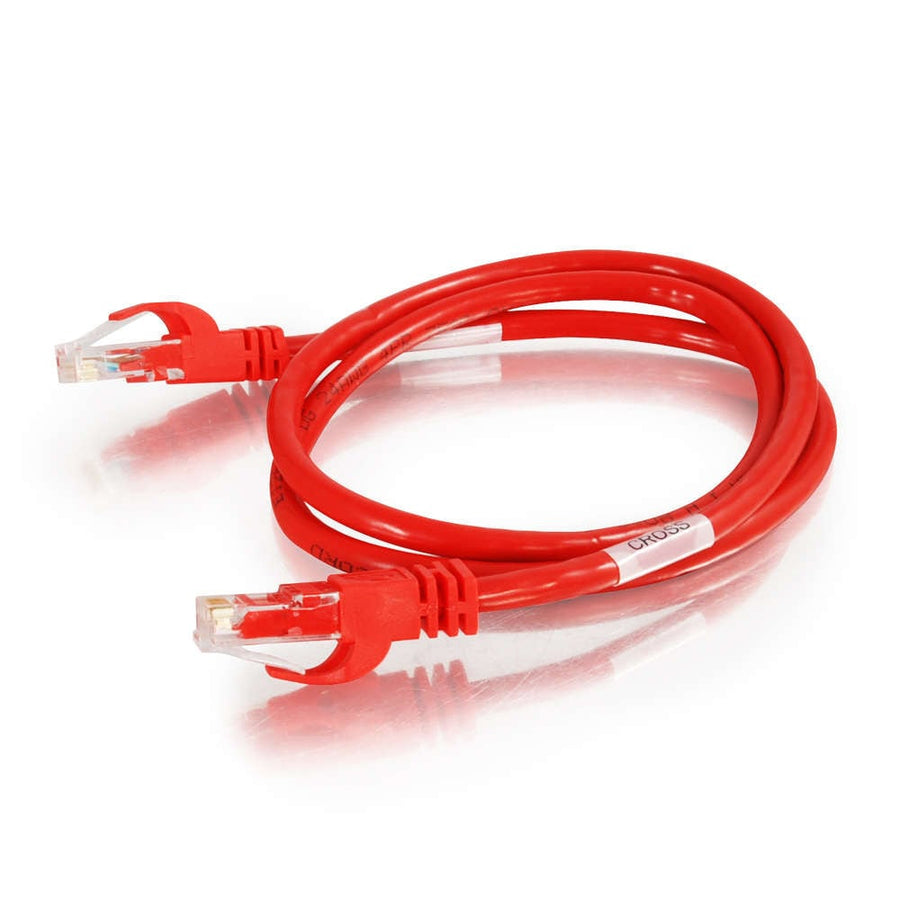

Red Cat6 crossover patch cable, 3 ft (0.9 m) length, featuring snagless RJ-45 connectors and UTP construction
The CG27861 is a 3 ft (0.9 m) Cat6 unshielded UTP crossover patch cable in red. This cable is specifically configured with crossed pins to facilitate peer-to-peer connections between two computers, allowing them to share files and data directly without the requirement of a hub or switch. It is also suitable for connecting network switches or hubs that lack uplink ports to other networking hardware. This Category 6 cable is designed to reduce impedance and structural return loss (SRL) to ensure error-free data transmission, while its shortened body plug design helps minimize Near-End Crosstalk (NEXT) levels. Each cable is fully tested and meets TIA/EIA Cat6 standards, supporting Gigabit Ethernet speeds. The red, snagless design includes a PVC connector hood to protect the clips during frequent insertion and removal, providing strain relief against excessive pulling during installation and use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278610 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG27861 crossover cable?
This cable is used to connect two computers directly for peer-to-peer data sharing, or to link switches and hubs that do not have uplink ports.
Will this cable support Gigabit Ethernet speeds?
Yes, this Cat6 rated cable provides the necessary throughput to handle Gigabit Ethernet speeds.
What is the difference between this and a standard patch cable?
Unlike standard patch cables, this crossover cable has a crossed pin configuration designed for direct device-to-device networking.
Is the CG27861 TAA compliant?
No, this product is not TAA compliant.
Does this cable feature snagless connectors?
Yes, the RJ-45 connectors feature a snagless design and PVC hoods to protect the clips during installation.
