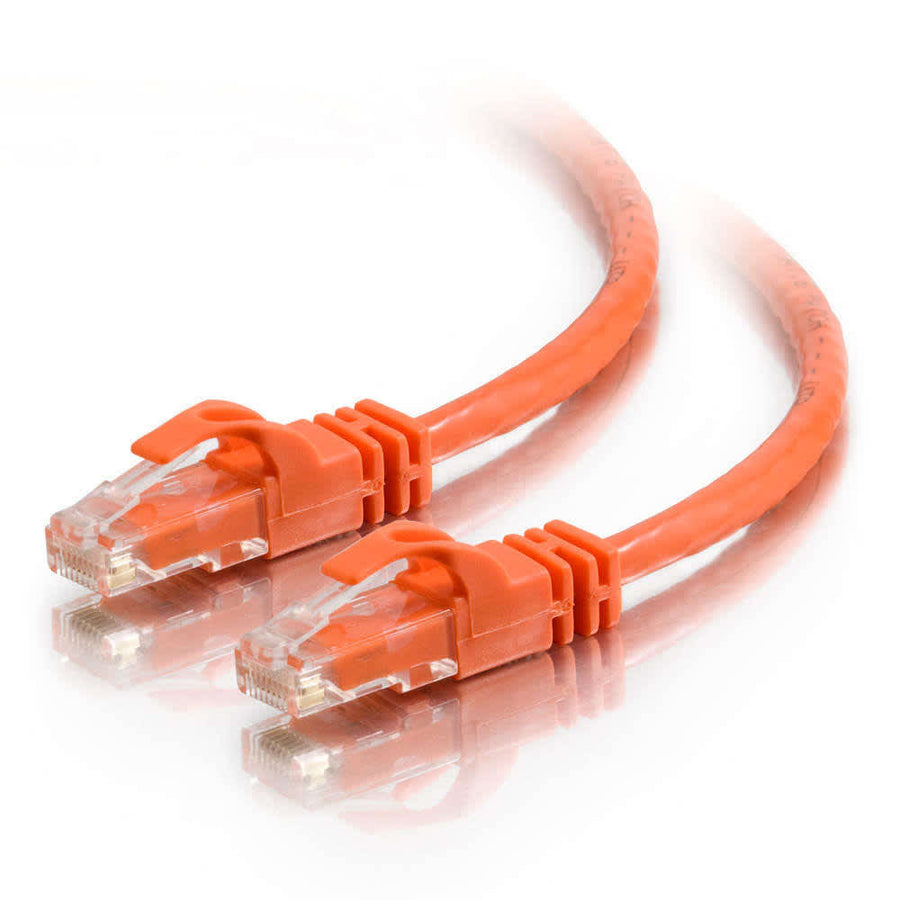

3ft (0.9m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Orange
Orange Cat6 UTP crossover patch cable, 3 ft (0.9 m) length, featuring snagless RJ-45 connectors
The C2G CG27891 is a 3 ft (0.9 m) Cat6 crossover patch cable designed specifically for peer-to-peer network connections. This orange unshielded twisted pair (UTP) cable features a crossed pin configuration, allowing two computers to share files and data directly without the need for an intermediary hub or switch. It can also be utilized to connect network switches or hubs that lack an uplink port to other switches or hubs. This cable is built with stranded copper conductors and a 24 AWG wire gauge to ensure reliable performance. The molded, snagless design protects the RJ-45 clips from damage during installation and removal, providing strain relief even when the cable is pulled. This Cat6 cable is fully tested to meet TIA/EIA standards, supporting Gigabit Ethernet speeds and a bandwidth of 500 mHz. It is suitable for operating in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278917 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the primary use for the C2G CG27891 crossover cable?
It is used to connect two computers together for peer-to-peer data sharing or to link network switches/hubs that lack an uplink port.
Will this Cat6 cable work for Gigabit Ethernet speeds?
Yes, this Cat6 crossover cable provides the necessary throughput to handle up to Gigabit Ethernet speeds.
What is the bend radius for this patch cable?
The minimum bend radius for the CG27891 is 0.6 in (15.2 mm).
Does this cable feature snagless connectors?
Yes, it features a molded snagless design that protects the RJ-45 clips from being damaged when plugging or unplugging.
What is the maximum operating temperature for this cable?
The cable is rated for operation in temperatures as high as 176°F (80°C).
