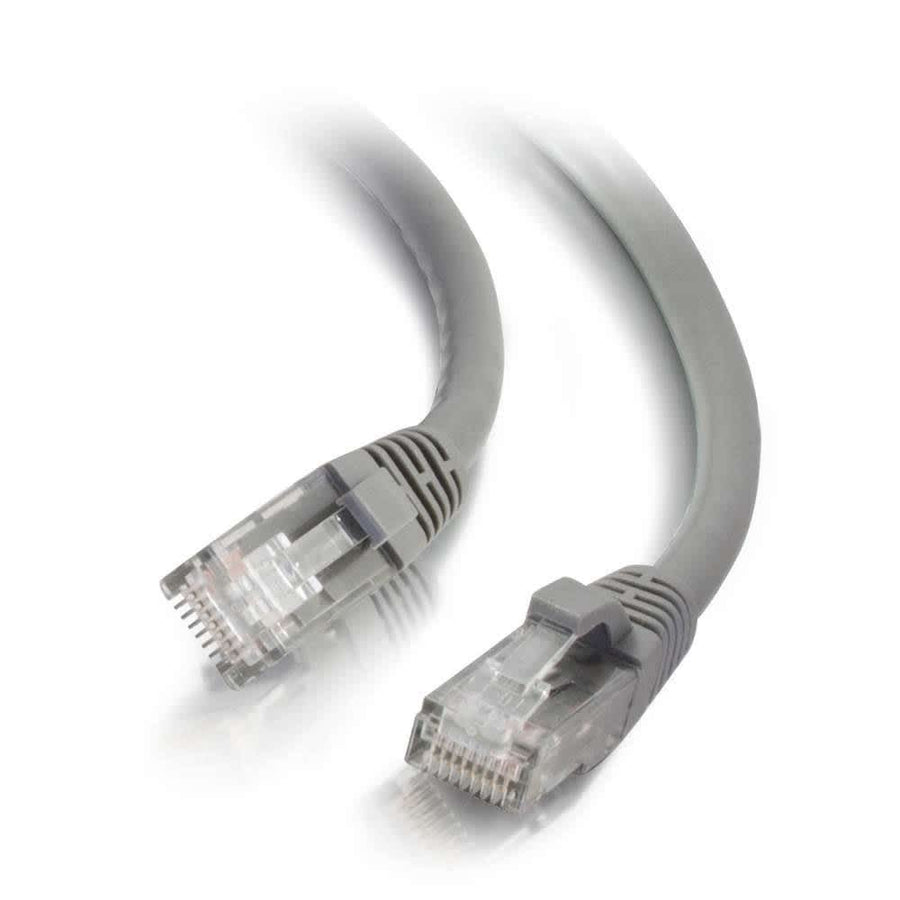

3ft (0.9m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 25 Pack - Gray
3ft Cat6 snagless UTP Ethernet patch cable multipack, 25-count, gray, with stranded copper conductors
The C2G CG29027 is a 25-pack multipack of 3 ft (0.9 m) Cat6 snagless UTP Ethernet patch cables in gray. These cables are engineered for high-bandwidth applications, including fast Ethernet and Gigabit networks used for voice, data, or video distribution. Each cable features stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. The design includes a molded snagless boot made of PVC, which provides strain relief and protects the connector during installation. These unshielded (UTP) cables utilize a T568B wiring scheme and are built to meet all Cat6 TIA/EIA standards, helping to reduce structural return loss (SRL) and impedance. The cable has a diameter of 0.24 in (6.2 mm) and a bend radius of 0.9 in (22.8 mm). This multipack is ideal for large-scale deployments requiring consistent, high-performance connectivity.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 25 |
| Shield Type | UTP |
| Shipping Weight | 2.32 lbs (1.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290278 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the length and quantity of the C2G CG29027 multipack?
Each pack contains 25 individual patch cables, and each cable is 3 ft (0.9 m) long.
Does the C2G CG29027 use stranded or solid conductors?
These cables feature stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
What wiring scheme is used for the CG29027 cables?
The CG29027 patch cables are wired using the T568B scheme.
What are the operating temperature limits for these cables?
The cables are rated for an operating temperature range of -4° - 176°F (-20° - 80°C).
Are these cables shielded or unshielded?
These are unshielded (UTP) Category 6 patch cables.
