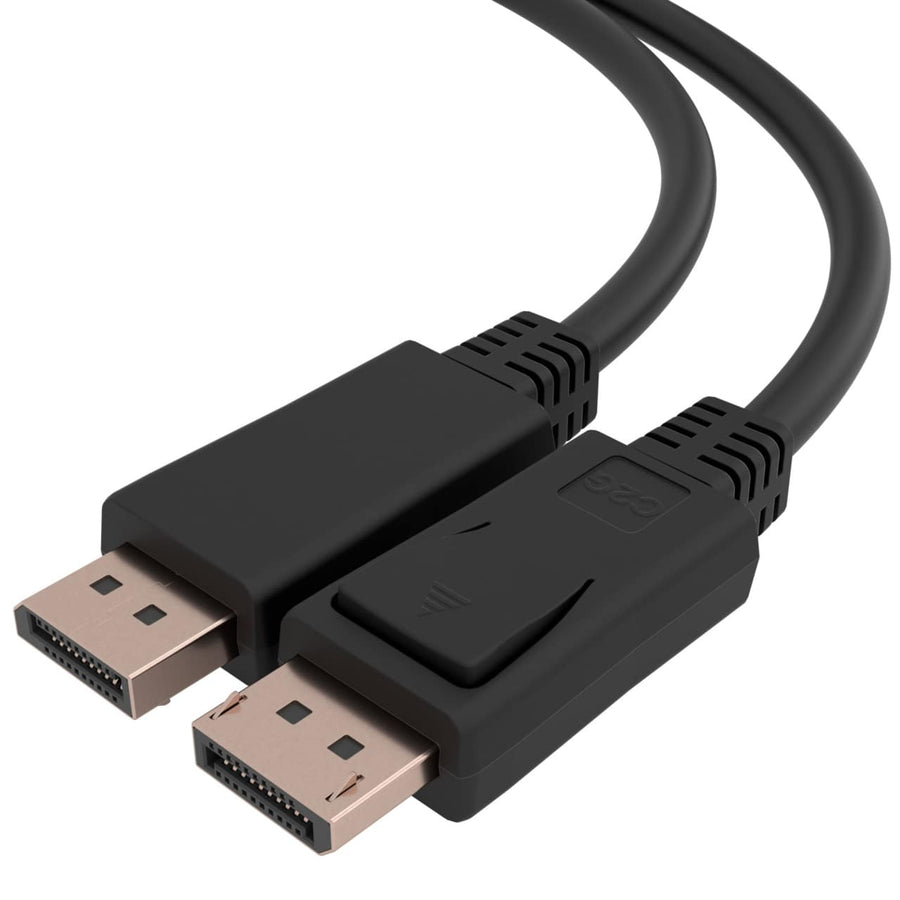

3ft (0.9m) C2G TAA-Compliant DisplayPort™ Cable with Latches-8K 60Hz
3 ft (0.9 m) TAA-compliant DisplayPort cable supporting 8K@60Hz (with DSC) and 32.4 Gbps data transfer rate
The C2G50112 is a 3 ft (0.9 m) DisplayPort cable designed for high-resolution professional video and audio applications. This TAA-compliant cable fully adheres to the DisplayPort 1.4 specification, supporting data bandwidth of up to 32.4 Gbps. It is capable of delivering video resolutions up to 8K@60Hz UHD (7680 x 4320) when utilizing Display Stream Compression (DSC), or 8K@30Hz without DSC. The integrated latching connectors ensure a secure physical connection between the DisplayPort male ends and your hardware, preventing accidental disconnections. Constructed with a PVC jacket that is VW-1 rated, the cable is suitable for basic applications. The 0.23 in (5.8 mm) diameter and 1.83 in (46.4 mm) bend radius allow for manageable routing in tight installation spaces. This cable supports uncompressed audio and deep color depth for high-fidelity signal transmission.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.83 in (46.4 mm) |
| Cable Diameter | 0.23 in (5.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Product Weight | 0.13 lbs (0.1 kg) |
| Cable Type | DisplayPort |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) DisplayPort Male |
All other specifications 7
| Jacket Rating | VW-1 Rated |
| TAA Compliant | Yes |
| UPC | 757120501121 |
| Certifications | CEREACHRoHSTAA |
| Data Transfer Rate | 32.4 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this cable support 8K resolution?
Yes, the C2G50112 supports 8K@60Hz UHD (7680 x 4320) when using DSC, and 8K@30Hz without DSC.
Is this DisplayPort cable TAA compliant?
Yes, this is a TAA-compliant cable, making it suitable for specific government and enterprise requirements.
What is the maximum data bandwidth for the C2G50112?
This cable supports a data transfer rate of up to 32.4 Gbps, allowing for uncompressed audio and deep color depth.
How do the latching connectors work?
The DisplayPort male connectors feature built-in latches to ensure a secure, stable connection to your display or source device.
What is the bend radius for this cable?
The minimum bend radius for this 3 ft (0.9 m) cable is 1.83 in (46.4 mm).
