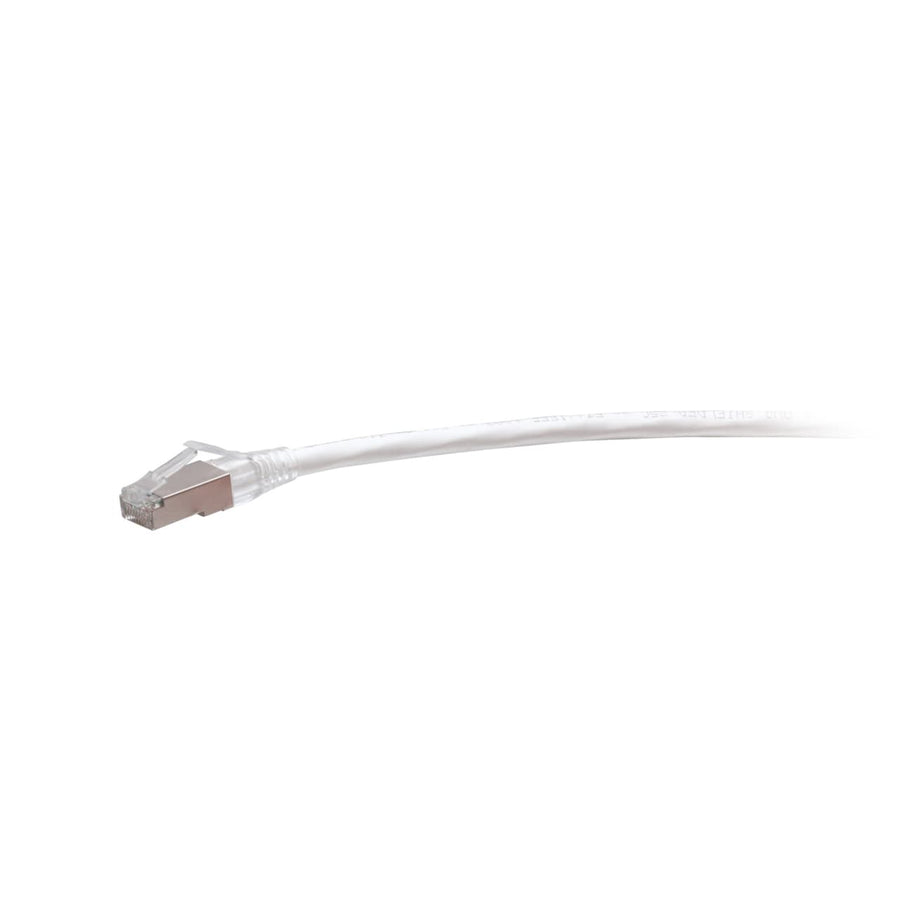

35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
35ft (10.7m) TAA-compliant Cat6a shielded STP network cable, snagless RJ45 connectors, white finish
The C2G43976 is a 35ft (10.7m) TAA-compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in white, designed for high-performance environments requiring 10GBase-T connectivity. This passive cable is engineered for use with network adapters, switches, routers, hubs, and patch panels to support high-bandwidth applications. The shielded STP construction uses aluminum foil and copper stranded conductors to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. Built with high-quality, made in the USA raw cable, this Cat6a cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 connector design protects the clips from damage during high-cycle insertion, while 50-micron gold-plated contacts ensure signal integrity. This CMR rated riser cable features a PVC jacket and operates within a temperature range of -4° to 167°F (-20° to 75°C). The 0.24 in (6 mm) diameter and T568B wiring scheme make it a reliable choice for professional voice, data, and video distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439769 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43976 suitable for government projects?
Yes, this C2G43976 cable is TAA-compliant and approved for use in United States government facilities and projects.
Will this Cat6a cable work for 10 Gigabit Ethernet?
The C2G43976 is designed for 10GBase-T ports and equipment, meeting ANSI/TIA-568.2-D standards to support 10 Gigabit Ethernet applications.
What kind of shielding does this cable use?
This is a Shielded STP cable that utilizes aluminum foil shielding and stranded copper to mitigate EMI, RFI, and alien crosstalk.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures between -4°F (-20°C) and 167°F (75°C).
What tools or accessories are needed for installation?
You may use accessories such as CG43035 White Cable Ties or CG43036 Black Cable Ties for cable management during installation.
