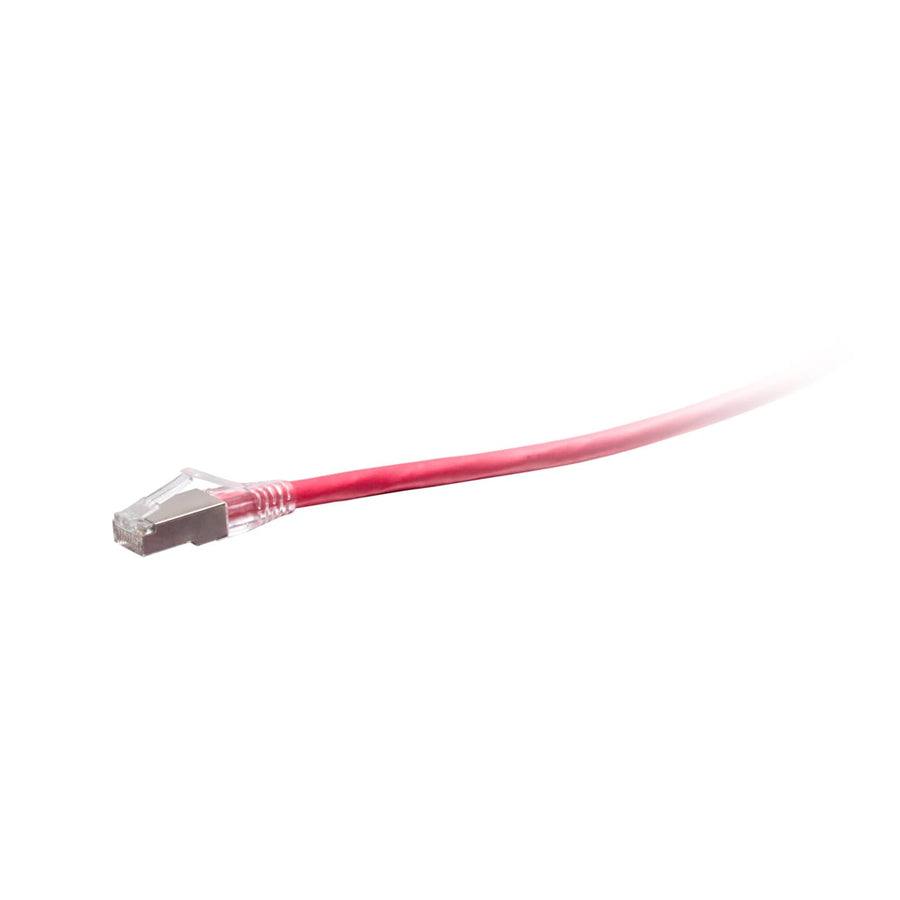

35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
35ft (10.7m) red Cat6a snagless shielded patch cable, TAA-compliant for 10GBase-T high-speed network environments
The C2G43892 is a 35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in Red, engineered specifically for high-speed 10GBase-T applications. This passive cable is designed to support bandwidth-intensive data, voice, and video distribution by drastically reducing impedance and structural return loss (SRL). It utilizes high-quality, made in the USA copper conductors with aluminum foil shielding to counter EMI, RFI, and alien crosstalk, making it suitable for environments with high electromagnetic interference. The construction features 50-micron gold-plated contacts and a snagless RJ45 design to protect the clips from damage during high-frequency insertion cycles. This CMR-rated, riser-application cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Because it is TAA-compliant, this red patch cable is approved for use in United States government projects and facilities. The 0.26 in (6 mm) diameter cable is built with stranded copper and PVC jacket material for reliable performance in diverse network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438922 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43892 TAA compliant?
Yes, this cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum bandwidth application for this Cat6a cable?
This cable is designed to handle bandwidth-intensive 10GBase-T (10 Gigabit Ethernet) applications, reducing impedance and structural return loss (SRL).
How does the shielding protect my network?
The Shielded STP construction uses aluminum foil shielding to protect 10 Gigabit network connections from EMI, RFI, and alien crosstalk.
Will the connector clips break during installation?
The snagless RJ45 connector design is specifically built to protect clips from being snapped off, which is ideal for applications with high insertion cycles.
What installation rating does this cable have?
This cable features a CMR rating and is suitable for riser-rated jacket applications.
