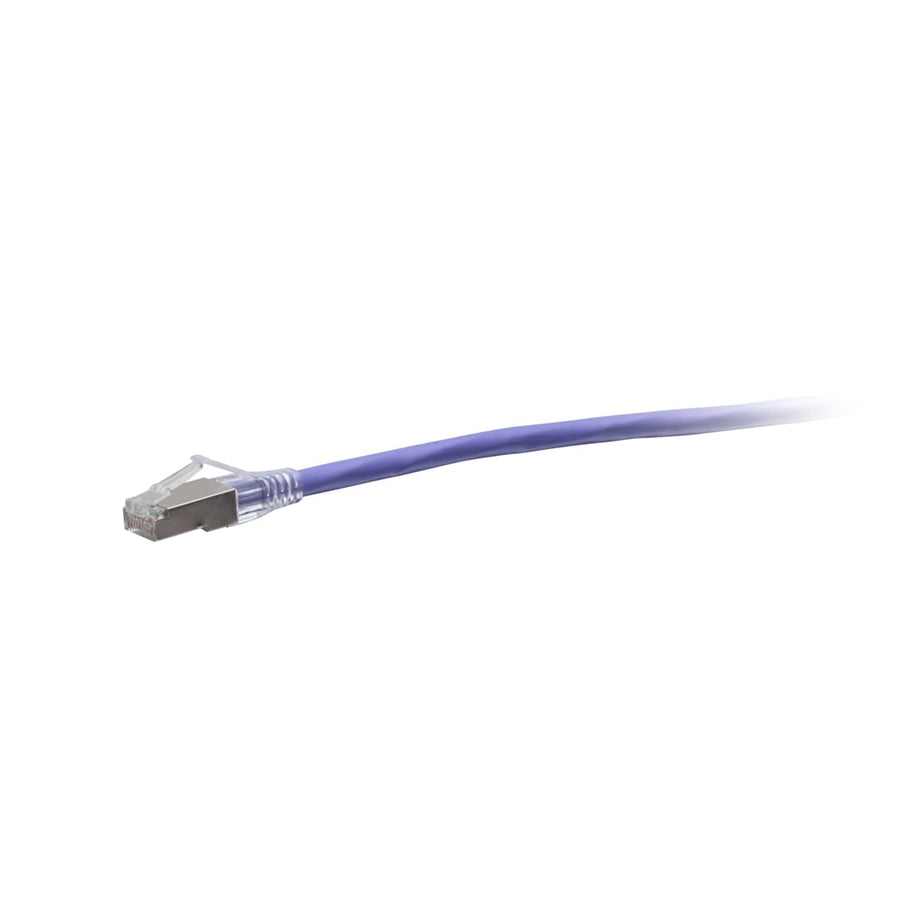

35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
35ft (10.7m) TAA-Compliant Cat6a Snagless Shielded (STP) Network Cable in Purple for 10GBase-T applications
The C2G43955 is a 35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in Purple. This passive cable is engineered for 10GBase-T ports and equipment, providing high-speed 10 Gigabit Ethernet connectivity for network adapters, hubs, switches, routers, and patch panels. The shielded STP construction utilizes an aluminum foil shield and premium made-in-the-USA copper stranded conductors to counter electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This makes it a reliable choice for bandwidth-intensive applications in environments where noise reduction is critical. The cable features 50-micron gold-plated contacts and a snagless RJ45 connector design to protect the clips from damage during high-frequency insertion cycles. Rated for CMR riser applications, this PVC-jacketed cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is approved for use in United States government projects and facilities due to its TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439554 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43955 TAA compliant?
Yes, this cable is TAA Compliant and is approved for use in United States government projects and facilities.
What is the maximum speed and standard support for the C2G43955?
This Cat6a cable supports 10GBase-T (10 Gigabit Ethernet) and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
How does the shielding on this C2G43955 cable work?
The cable uses Shielded STP construction with an aluminum foil shield and stranded copper conductors to protect against EMI, RFI, and alien crosstalk.
What type of installation is this cable rated for?
This C2G43955 cable features a PVC jacket with a CMR riser rating for appropriate installation environments.
Does this cable feature snagless connectors?
Yes, it features a snagless RJ45 connector design to protect the clips from being snapped off during installation or frequent use.
