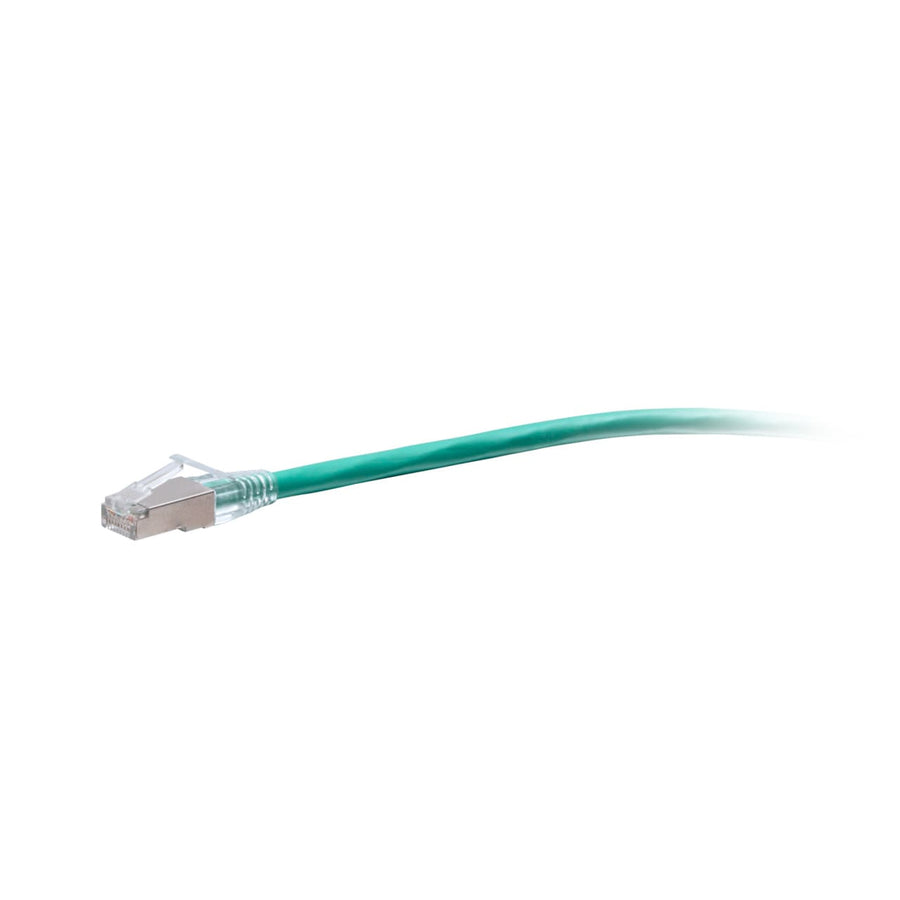

35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
35ft (10.7m) shielded Cat6a snagless network cable in Green, TAA-compliant for 10GBASE-T applications
The C2G43871 is a 35ft (10.7m) TAA-compliant Cat6a patch cable designed for high-speed 10GBASE-T network environments. This shielded STP cable is constructed with high-quality, made in the USA copper stranded conductors to provide consistent, reliable performance for bandwidth-intensive applications. It features a snagless RJ-45 design, which protects the clips from damage during frequent insertion cycles, making it an excellent choice for high-traffic network nodes. To protect signal integrity against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable utilizes an aluminum foil shield. The connectors are fitted with 50-micron gold-plated contacts to ensure stable connectivity. This Green jacketed cable is CMR rated for riser applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Because it is TAA-compliant, this cable is approved for use in United States government projects and facilities. This passive cable operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438717 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43871 TAA compliant for government contracts?
Yes, the C2G43871 is TAA-compliant and is approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6a cable?
This cable is rated for operation in temperatures ranging from -4°F (-20°C) up to 167°F (75°C).
Does this cable provide protection against electromagnetic interference?
Yes, the shielded STP construction utilizes an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
What is the wiring scheme for the C2G43871?
This 35ft Cat6a cable follows the T568B wiring scheme and features 26 AWG stranded copper conductors.
Can I use this cable in a riser installation?
Yes, this cable has a CMR rating, making it suitable for riser jacket applications.
