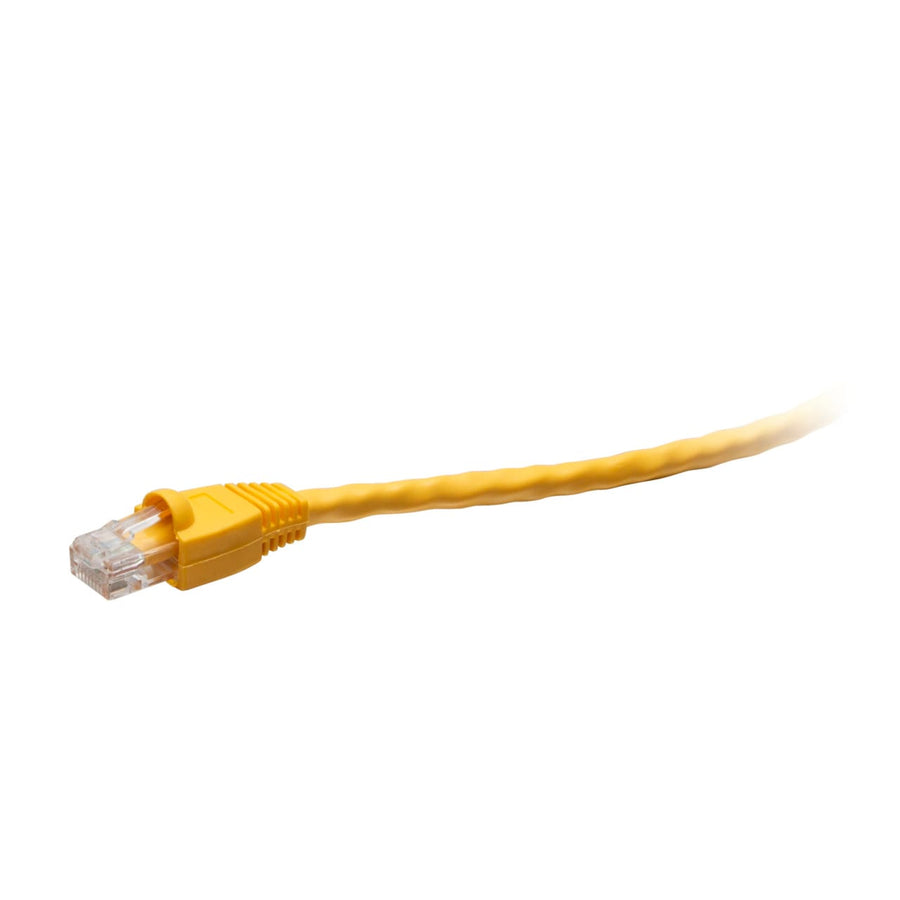

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
35ft (10.7m) TAA-compliant Cat6 snagless UTP network cable, yellow, 24 AWG stranded copper
The C2G C2G43523 is a 35ft (10.7m) TAA-compliant Cat6 snagless unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This passive cable is suitable for use in network adapters, hubs, switches, routers, and servers. It is constructed with high-quality, made in the USA stranded copper cabling that provides an enhanced 600 MHz maximum frequency for reliable data transmission. The cable features an RJ-45 male to RJ-45 male connector configuration with 50-micron gold-plated contacts to maintain signal integrity. To prevent damage during installation or high-cycle use, the snagless molded boot protects the clips from snapping. This CMR rated cable is riser rated and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting applications such as 1000BASE-T (1 Gigabit Ethernet). The yellow jacket material is made of PVC and is designed for use in environments with an operating temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435235 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G C2G43523 TAA compliant?
Yes, this Cat6 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What type of jacket rating does this cable have?
This is a CMR rated cable with a riser application and a PVC jacket material.
What is the maximum frequency for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, supported by high-quality, made in the USA stranded copper.
Will the connector clips break easily during installation?
The snagless molded boot is designed to protect the RJ-45 clips from being snapped off, which is ideal for applications with high insertion cycles.
What is the operating temperature range for this cable?
The cable is rated for an operating temperature range of -4° to 167°F (-20° to 75°C).
