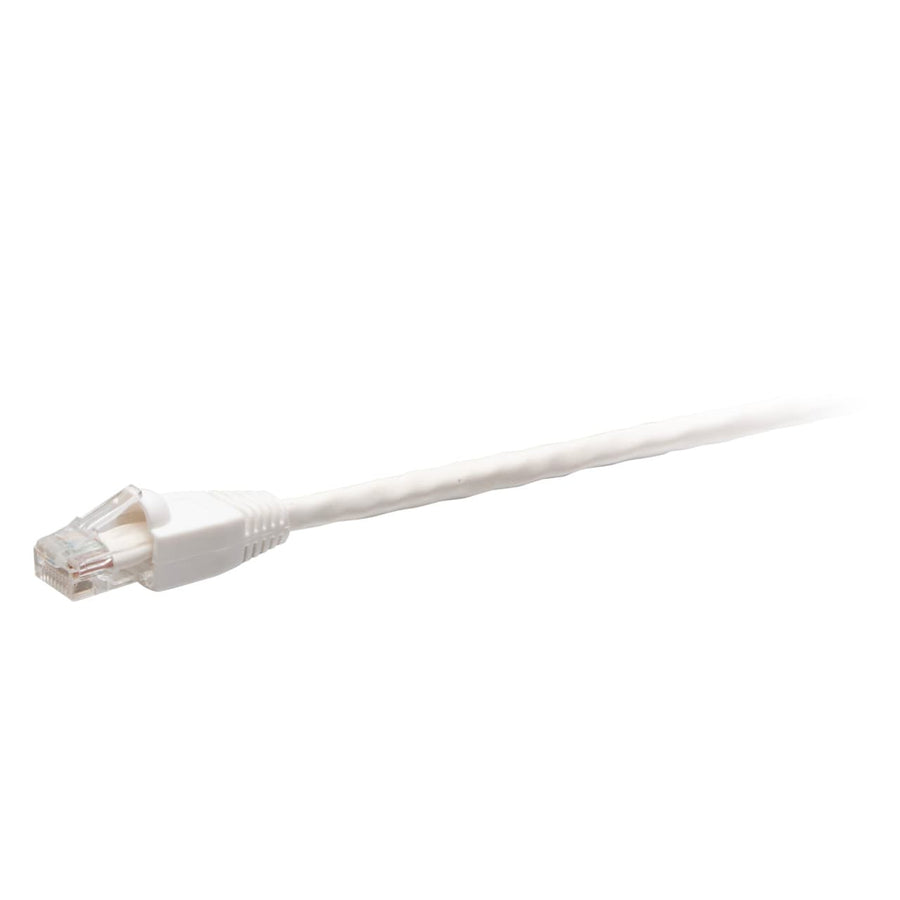

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
35 ft (10.7 m) white Cat6 UTP network cable, snagless RJ-45 connectors, TAA-compliant and CMR rated
The C2G43586 is a 35 ft (10.7 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in white. This passive cable is designed for high-performance connectivity between network adapters, hubs, switches, routers, and servers. Built with high-quality, made in the USA copper stranded conductors, this cable supports 1000BASE-T (1 Gigabit Ethernet) applications. It features a maximum frequency of 600 MHz, providing enhanced performance over standard Cat6 cabling. The molded, snagless boot is designed to protect the RJ-45 clips from snapping during installation and high insertion cycles, providing additional strain relief. This cable uses 24 AWG wire with a T568B wiring scheme and 50-micron gold-plated contacts to maintain signal integrity. It is a CMR rated, riser-rated cable with a PVC jacket, suitable for use in a wide range of operating temperatures from -4° to 167°F (-20° to 75°C). This product meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435860 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43586 TAA compliant for government use?
Yes, this is a TAA-compliant F-Series cable approved for use in United States government projects and facilities.
What is the maximum data rate and frequency for this Cat6 cable?
The cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
Can I use this cable in a plenum space?
No, this is a CMR rated, riser-rated cable with a PVC jacket.
What type of RJ-45 connectors does this cable use?
It features snagless, unshielded UTP RJ-45 male connectors with 50-micron gold-plated contacts for improved signal integrity.
Does this cable support standard T568B wiring?
Yes, this cable is configured with a standard T568B wiring scheme.
