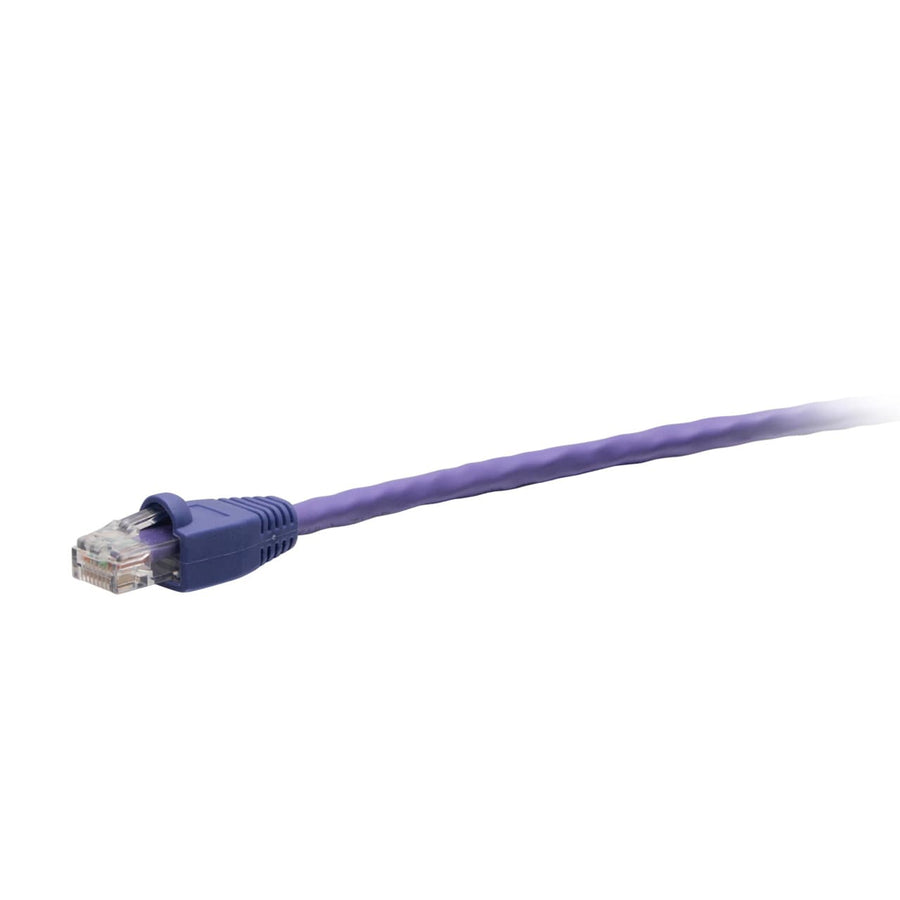

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
35ft TAA-compliant Cat6 UTP network cable in purple, featuring snagless RJ45 connectors and CMR riser-rated jacket
C2G43565 is a 35ft (10.7m) TAA-compliant Cat6 Snagless Unshielded (UTP) Network Cable in purple. Engineered to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. It is constructed with high-quality, made in the USA raw copper cabling that offers an enhanced 600 MHz maximum frequency, providing more consistent and reliable performance than standard Cat6 cables. This passive cable meets or exceeds all ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting high-bandwidth applications such as 1000BASE-T (1 Gigabit Ethernet). The snagless RJ45 connector design protects the clips from snapping during high-insertion cycle applications, and the 50-micron gold-plated contacts ensure signal integrity. The jacket is CMR rated for riser applications and is made of PVC. This cable is suitable for use with network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435655 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43565 TAA compliant?
Yes, this cable is TAA compliant and meets the requirements for United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables.
What is the difference between this cable and a standard Cat6 cable?
This F-Series cable uses made in the USA copper cabling and includes a snagless boot to protect the RJ45 clips from damage.
Can this cable be used in riser applications?
Yes, the jacket is CMR rated specifically for riser applications.
Which standards does this network cable meet?
This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for Category 6.
