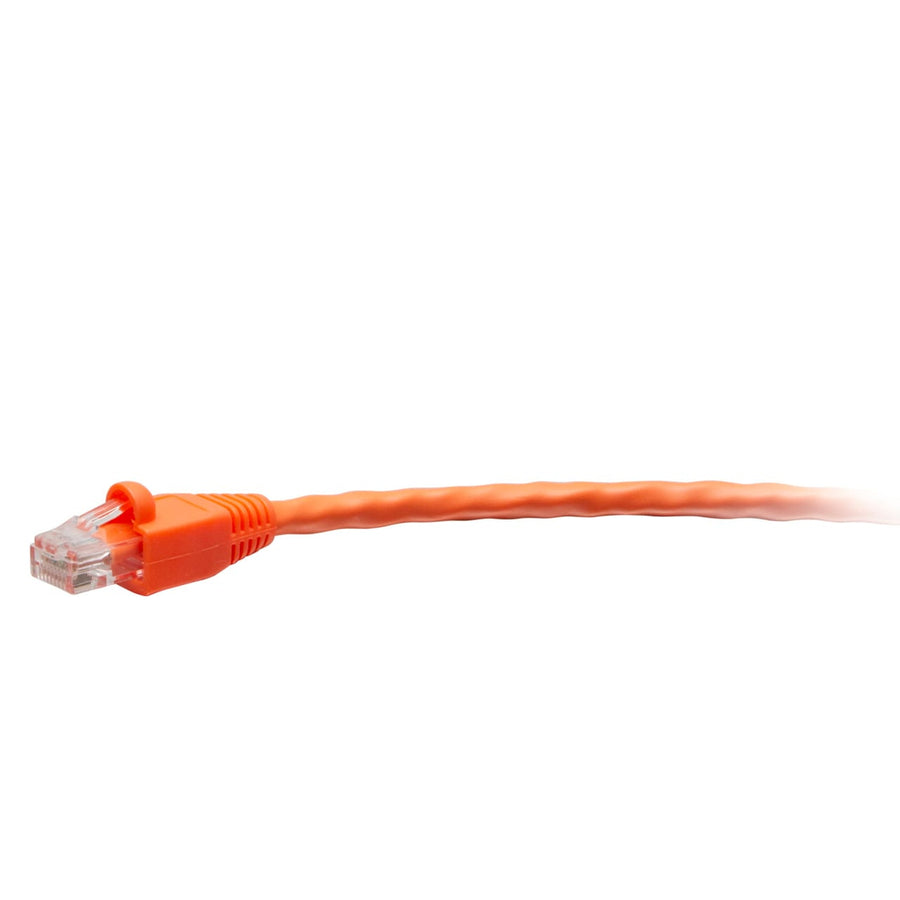

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
35ft (10.7m) TAA-Compliant Cat6 Snagless UTP network cable in orange with 24 AWG copper stranded conductors
The C2G43544 is a 35 ft (10.7 m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) network cable specifically designed for use in United States government projects and facilities. This orange-jacketed cable features 24 AWG stranded copper conductors that provide an enhanced 600 MHz maximum frequency, offering increased performance over standard Cat6 cables to support applications such as 1000BASE-T (1 Gigabit Ethernet). The cable is CMR rated for riser applications and uses a PVC jacket material. Each end is terminated with an RJ-45 male connector featuring 50-micron gold-plated contacts to maintain signal integrity. A molded, snagless boot covers the connector to protect the clips from accidental breakage during high-cycle insertion and provides additional strain relief. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for reliable connectivity in hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435440 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43544 TAA compliant?
Yes, this Cat6 cable is TAA compliant and is approved for use in United States government projects and facilities.
What type of jacket is required for this Cat6 cable?
This cable features a CMR rated Riser application jacket made of PVC material.
Will this cable support Gigabit Ethernet?
Yes, this cable meets or exceeds ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between the snagless boot and standard connectors?
The molded, snagless boot protects the RJ-45 clips from being snapped off during installation and provides extra strain relief.
Can I use this cable in a patch panel or enclosure?
Yes, it is compatible with various components including the CG37199 24-Port Cat6 110-Type Patch Panel or the EN1450 14 Inch Enclosure.
