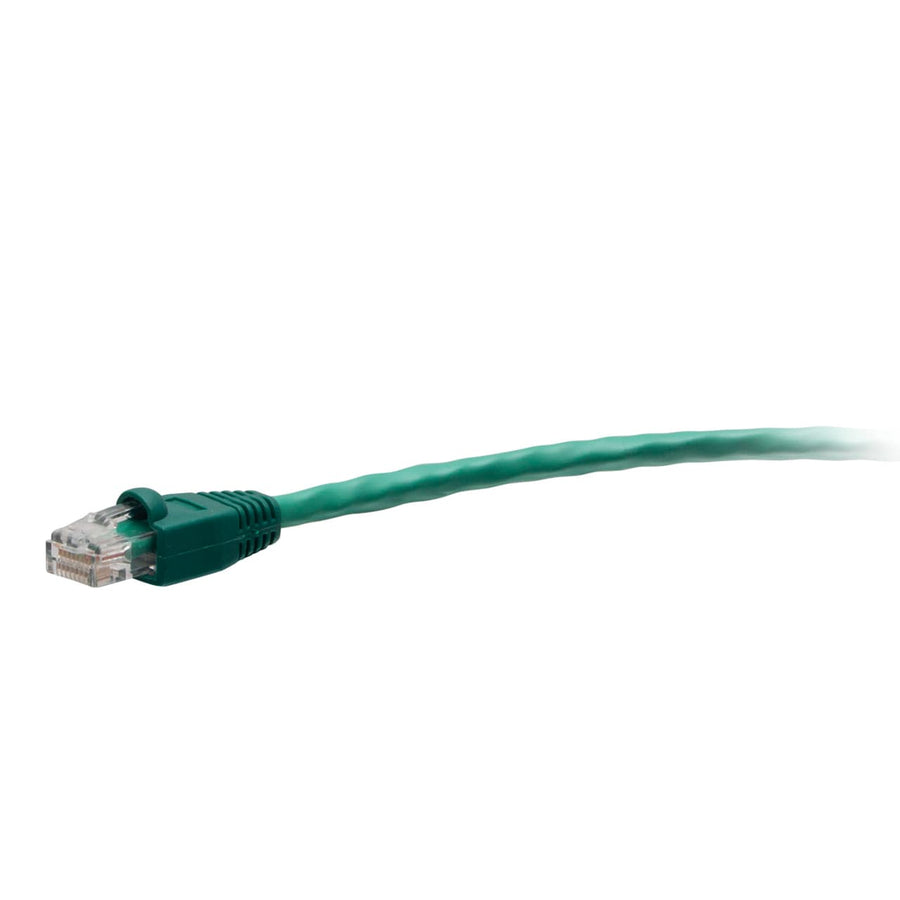

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
35ft TAA-compliant Cat6 UTP network cable in green with snagless connectors and 50-micron gold-plated contacts
The C2G43502 is a 35ft (10.7m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable finished in green. This passive cable is engineered for high-performance connectivity in demanding environments, including 1000BASE-T (1 Gigabit Ethernet) applications. It is specifically approved for use in United States government projects and facilities because it meets TAA compliance requirements. The cable utilizes 24 AWG stranded copper conductors and is built with high-quality, made-in-the-USA raw cable to ensure consistent and reliable signal performance. To support higher bandwidth needs, it features an enhanced 600 MHz maximum frequency. The molded, snagless boot protects the RJ-45 clips from damage during installation and provides additional strain relief, making it suitable for high-insertion-cycle environments like switches and routers. This CMR-rated riser cable is constructed with a PVC jacket and features 50-micron gold-plated contacts to maintain signal integrity. The wiring follows the T568B scheme and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435020 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43502 TAA compliant?
Yes, this cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for the C2G43502?
The cable supports a 600 MHz maximum frequency and is designed for 1000BASE-T (1 Gigabit Ethernet) applications.
What kind of jack/connector does this Cat6 cable use?
This cable features RJ-45 male connectors with a snagless boot design to protect the clips during installation.
What is the jacket rating for this green Cat6 cable?
The C2G43502 has a CMR (Riser) rated jacket made of PVC material.
What are the physical specifications for the C2G43502?
This 35ft (10.7m) cable has a 0.22 in (5.6 mm) diameter and uses 24 AWG stranded copper conductors.
