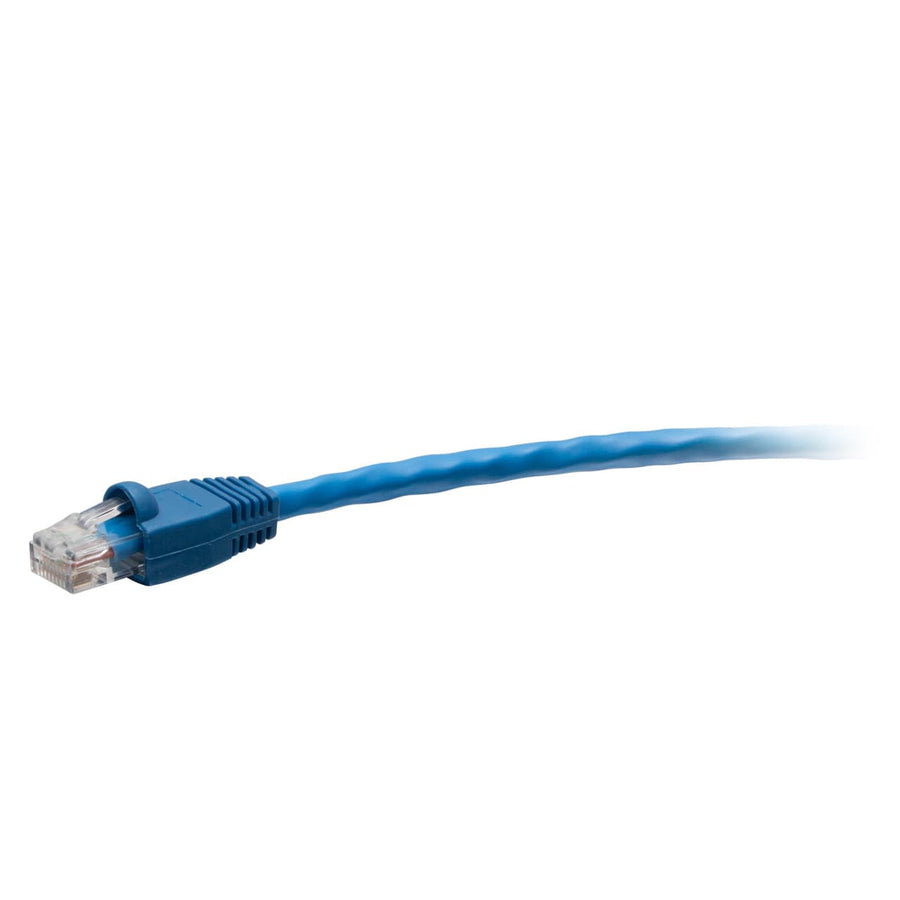

35ft (10.7m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
35ft (10.7m) TAA-compliant Cat5e snagless UTP network cable in blue, featuring 50-micron gold-plated contacts and CMR rating
The C2G43421 is a 35ft (10.7m) TAA-compliant Cat5e snagless UTP network cable designed for professional installations in United States government projects and facilities. This blue, unshielded twisted pair (UTP) cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. Constructed with high-quality, made in the USA copper cabling, it provides an enhanced maximum frequency of 350 MHz for consistent performance. The snagless RJ-45 male connectors feature a molded boot that protects the clips from damage during high-frequency insertion cycles while providing additional strain relief. This CMR rated, riser-rated cable is suitable for use with network adapters, hubs, switches, and routers. The 26 AWG stranded copper conductors and 50-micron gold-plated contacts ensure high signal integrity. This passive cable is designed to operate in temperatures ranging from -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434214 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
14 Inch Enclosure with Screw-On Cover
EN1400$59.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43421 TAA compliant for government contracts?
Yes, the C2G43421 is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat5e cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 350 MHz maximum frequency.
Does this cable feature gold-plated connectors?
Yes, the C2G43421 includes 50-micron gold-plated contacts to improve signal integrity.
What is the jacket rating for this network cable?
The C2G43421 is a CMR rated, riser-rated cable with a PVC jacket.
What is the wiring scheme used for this Cat5e cable?
The C2G43421 uses the T568B wiring scheme for its RJ-45 male connectors.
