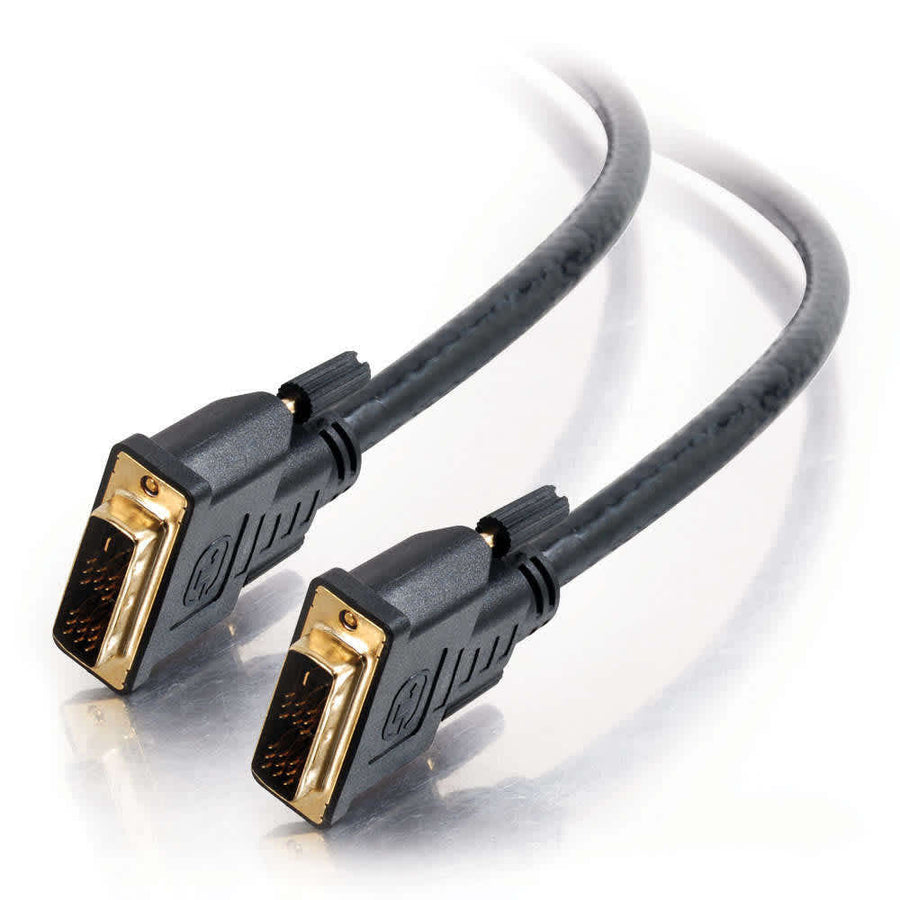

35ft (10.7m) Pro Series Single Link DVI-D™ Digital Video Cable M/M - Plenum CMP-Rated
35 ft (10.7 m) DVI-D Single Link Male to Male cable, Plenum CMP-rated for commercial air-handling environments
The C2G CG41202 is a 35 ft (10.7 m) Pro Series Single Link DVI-D™ Digital Video Cable featuring Male to Male connectors. Designed to meet strict building codes for cabling in plenum spaces, this cable is suitable for routing through air-handling spaces in schools, hospitals, and commercial buildings. It carries CMP and FT6 ratings, ensuring compliance with high standards for fire resistance in such environments. This cable is engineered for true digital performance, supporting video resolutions up to WUXGA (1920x1200). Construction includes 24 AWG copper conductors and shielding to protect against EMI and RFI, ensuring signal integrity. The connectors are 24k gold-plated to prevent metal corrosion and maintain optimal signal transfer. This DVI cable is strictly for digital video signals and does not support analog video. It is a reliable solution for A/V equipment in conference rooms or classrooms where plenum-rated cabling is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.33 in (8.4 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shipping Weight | 3.12 lbs (1.4 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Shielded |
| Cable Type | DVI |
| Color | Black |
| Connector 1 | (1) DVI-D Single Link Male |
All other specifications 11
| Connector 2 | (1) DVI-D Single Link Male |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| UPC | 757120412021 |
| Video Input Support | DVI-D |
| Video Output Support | DVI-D |
| Video Resolution | WUXGA (1920x1200) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Yes, the CG41202 is CMP and FT6 rated for use in plenum spaces, such as those above dropped ceilings in commercial buildings.
Yes, the CG41202 is CMP and FT6 rated for use in plenum spaces, such as those above dropped ceilings in commercial buildings.
No, this Pro Series cable only supports digital video signals and does not support analog video.
No, this Pro Series cable only supports digital video signals and does not support analog video.
The CG41202 supports video resolutions up to WUXGA (1920x1200).
The CG41202 supports video resolutions up to WUXGA (1920x1200).
Yes, its plenum-rated (CMP) jacket is designed for the strict fire resistance requirements of schools, hospitals, and other commercial settings.
Yes, its plenum-rated (CMP) jacket is designed for the strict fire resistance requirements of schools, hospitals, and other commercial settings.
The CG41202 features DVI-D Single Link Male to Male connectors with 24k gold plating.
The CG41202 features DVI-D Single Link Male to Male connectors with 24k gold plating.
