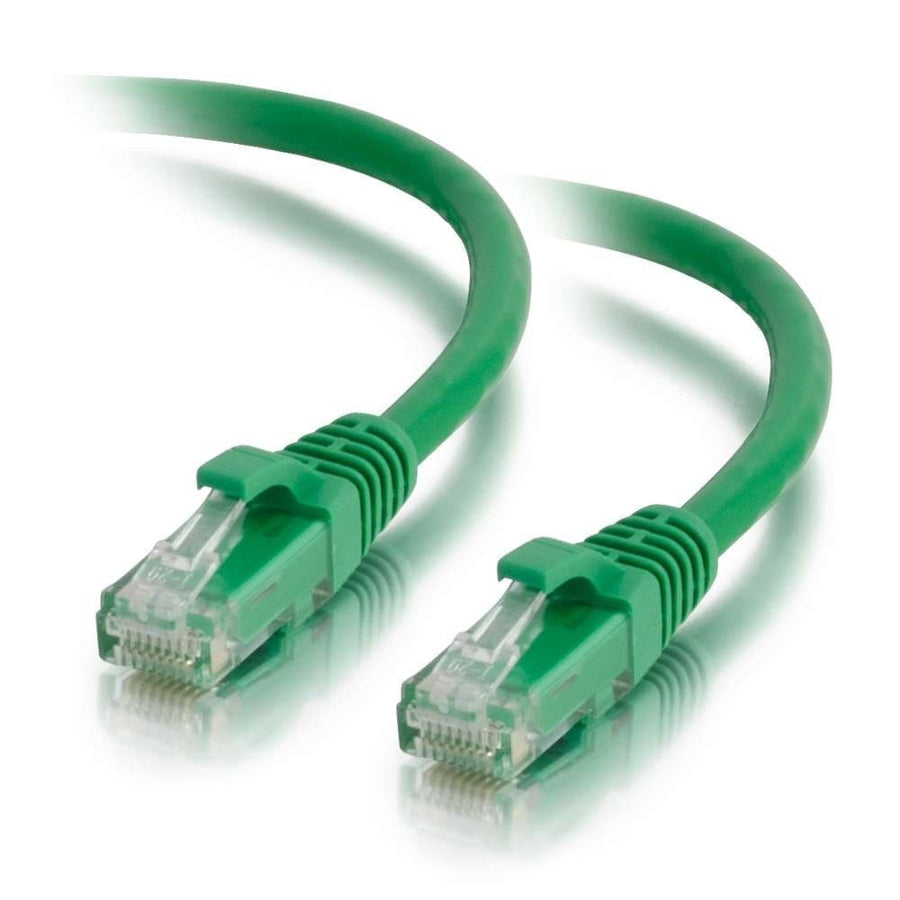

35ft (10.7m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
35ft (10.7m) Cat5e unshielded UTP patch cable in Green, featuring snagless boots for clip protection
The C2G CG00419 is a 35ft (10.7m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution. This cable utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels, making it suitable for fast Ethernet networks. Each individual pair is bonded to maintain twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and is built with a PVC jacket and PVC connector hoods. For ease of installation and maintenance, the snagless, booted RJ-45 connectors protect the clips from damage during frequent plugging and unplugging. This Green cable follows the T568B wiring scheme and is rated for standard, non-rated applications. It is a TIA/EIA compliant solution that supports a bandwidth of 350 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.78 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120004196 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the wiring scheme for the C2G CG00419 cable?
The CG00419 follows the T568B wiring scheme for its two RJ-45 male connectors.
Is the CG00419 suitable for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for bandwidth-intensive applications, including video distribution, and supports 350 mHz.
How does the snagless design help during installation?
The molded, snagless boot protects the RJ-45 connector clips from breaking when being plugged or unplugged in tight spaces.
Does this cable use solid or stranded copper?
This 35ft patch cable uses stranded copper conductors to help minimize Near-End Crosstalk (NEXT).
What are the compliance certifications for this cable?
The CG00419 is listed with CE, REACH, and RoHS certifications, and is also NDAA 889 compliant.
