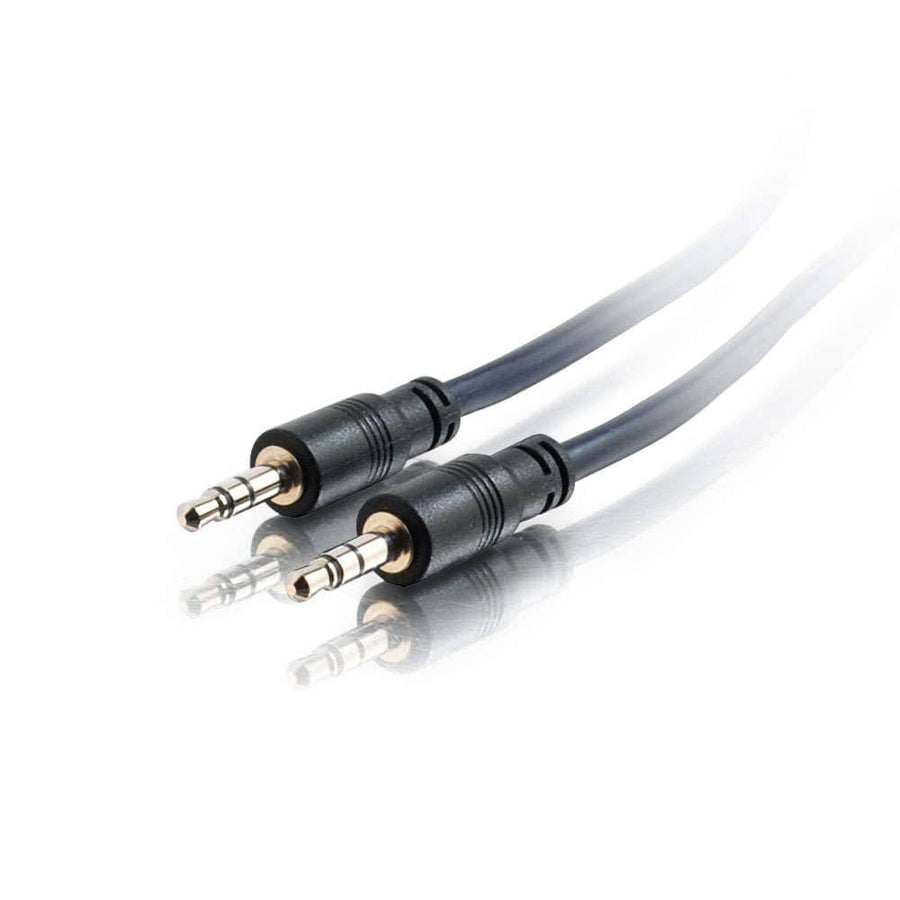

35ft (10.7m) 3.5mm Stereo Audio Cable with Low Profile Connectors M/M - Plenum CMP-Rated
35 ft (10.7 m) 3.5mm stereo audio cable with low-profile connectors, plenum CMP-rated for in-wall installations
The C2G CG40517 is a 35 ft (10.7 m) 3.5mm stereo audio cable designed for professional audio/video installations in commercial and educational environments. This cable is engineered to facilitate easy routing through tight spaces, featuring a 0.13 in (3.4 mm) cable diameter and low-profile connectors that have a 1.5 in total depth. These compact dimensions allow for easier in-wall connections and reduced clearance requirements in plenum air spaces. For signal integrity, the assembly utilizes 22 AWG twisted pair wire with foil shielding. The jacket is CMP-rated and FT6 rated, providing the fire protection required to run within walls and plenum air spaces without the need for conduit. This 35 ft audio cable features 3.5mm stereo male connectors on both ends and is rated for operating temperatures up to 167°F (75°C). This SKU is part of a series available in different lengths, including a 50 ft (15.2 m) version (CG40518).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.13 in (3.4 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | 167°F (75°C) |
| Shipping Weight | 0.56 lbs (0.3 kg) |
| Wire Gauge | 22 |
| Cable Type | Audio |
| Connector 1 | (1) 3.5mm Stereo Male(1) 3.5mm Stereo Male |
| Connector 2 | (1) 3.5mm Stereo Male(1) 3.5mm Stereo Male |
All other specifications 7
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120405177 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
You'll need these with it
Questions about this part
Will the CG40517 work in plenum air spaces?
Yes, this cable is CMP rated and FT6 rated, making it suitable for installation within walls and plenum air spaces without requiring conduit.
What is the connector depth for the CG40517?
The low-profile 3.5mm stereo male connectors have a total depth of 1.5 in, which helps save space in tight mounting environments.
What other lengths are available in this series?
This series includes the CG40518, which is a 50 ft (15.2 m) version of the same low-profile plenum cable.
Is the CG40517 suitable for commercial audio installations?
Yes, it is designed for audio/video installations in commercial and educational settings where plenum-rated cabling is required.
What is the temperature rating for this audio cable?
The cable is rated for operation in temperatures up to 167°F (75°C).
