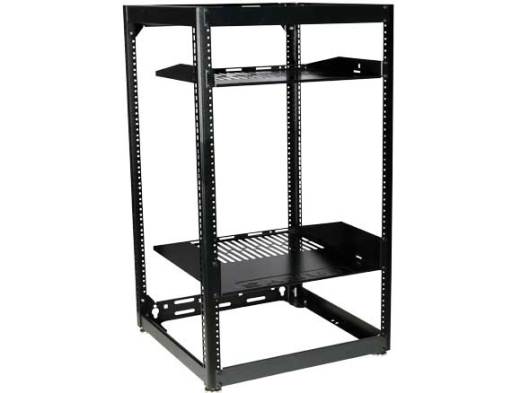

35" Tall AV Rack 20U Stackable Skeleton Rack
20U stackable skeleton rack for AV gear, supports 600 lbs freestanding or 200 lbs wall-mounted
The Sanus CFR1620-B1 is a 20U stackable skeleton rack designed for efficient AV equipment organization and thermal management. This modular component rack features a self-aligning structure that can be assembled in approximately 15 minutes. For floor-standing installations, this rack supports a weight capacity of 600 lbs (272.2 kg). When used as a wall mount, the capacity is 200 lbs. The open-frame design ensures that all equipment remains easily accessible and maintains optimal airflow for cooling. This series is part of the SANUS EcoSystem®, allowing for modular expansion. Because of its stackable architecture, you can couple multiple units to create various height combinations, including 15U, 20U, 30U, 35U, or 40U configurations. This unit has a 20 in (50.8 cm) depth and a 20.39 in (51.8 cm) width.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Package Depth | 20.9 in (53.1 cm) |
| Package Height | 7.5 in (19.1 cm) |
| Package Width | 31.1 in (79 cm) |
| Product Height Without Casters | 35 in (88.9 cm) |
| Product Weight | 19.82 lbs (9 kg) |
| Rack Units | 20 RU |
| Shipping Dimensions | 36.22" x 21.38" x 8.58" (920 x 543.1 x 218 mm) |
All other specifications 8
| Shipping Weight | 40.79 lbs (18.5 kg) |
| Weight Capacity | 600 lbs (272.2 kg) |
| Width | 20.39 in (51.8 cm) |
| Application | FreestandingWall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete Installations7/16" Socket WrenchAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Universal Mounting | No |
| UPC | 793795525505 |
Resources
Questions about this part
How much weight can I mount on the CFR1620-B1 if it is on the floor?
The rack supports up to 600 lbs (272.2 kg) when used in a freestanding configuration.
Can I mount this rack on a wall?
Yes, this rack is suitable for wall mounting with a weight capacity of 200 lbs when mounted to a wall.
How do I expand the height of this rack?
The modular, stackable design allows you to couple units to reach 15U, 20U, 30U, 35U, or 40U total height.
What tools are required for installation?
Required tools include a Phillips Head Screwdriver, level, tape measure, stud finder, electric drill, and various wrenches (1/2", 7/16").
What is the difference between the floor and wall weight limits?
The freestanding weight capacity is 600 lbs (272.2 kg), while the wall-mount capacity is limited to 200 lbs.
