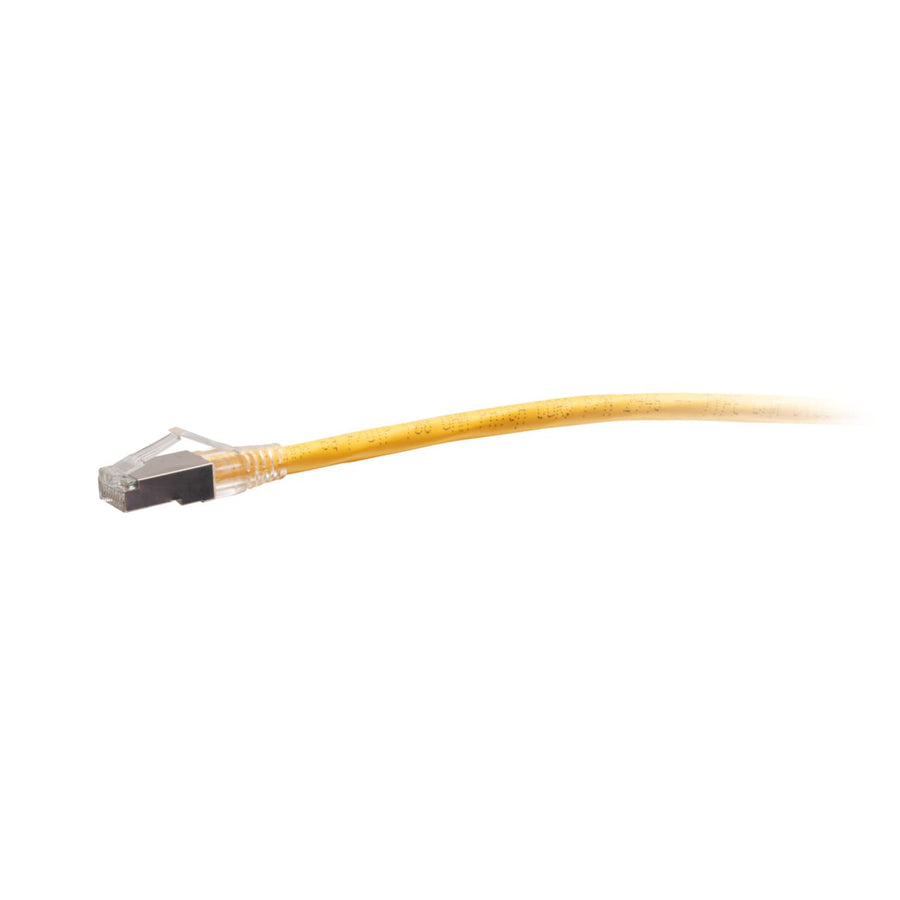

30ft (9.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
30ft TAA-Compliant Cat6a shielded STP patch cable, snagless yellow RJ45 connectors, for 10GBase-T networking
The C2G43912 is a 30 ft (9.1 m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in yellow. This passive, shielded STP patch cable is designed for high-speed 10GBase-T network connections, providing protection against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is constructed with made in the USA copper cabling and aluminum foil shielding to support bandwidth-intensive applications while reducing impedance and structural return loss (SRL). The cable features a 26 AWG stranded copper conductor with a 0.22 in (5.6 mm) diameter and is jacketed in CMR-rated PVC for riser applications. Both RJ-45 male connectors are equipped with 50-micron gold-plated contacts and a snagless design to prevent the clips from breaking during high-frequency insertion cycles. This cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is approved for use in United States government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439127 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43912 TAA compliant for government projects?
Yes, this C2G43912 cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, it is designed for 10GBase-T ports and equipment, helping to protect high-speed connections from noise and interference.
What is the maximum operating temperature for this cable?
The cable is rated to operate in temperatures ranging from -4° to 167°F (-20° to 75°C).
What is the difference between the STP and UTP versions of this cable?
The C2G43912 features Shielded Twisted Pair (STP) construction with aluminum foil to counter EMI and RFI, whereas unshielded versions lack this specific protection.
Does this cable have a warranty?
This C2G network cable comes with a lifetime warranty from the manufacturer.
