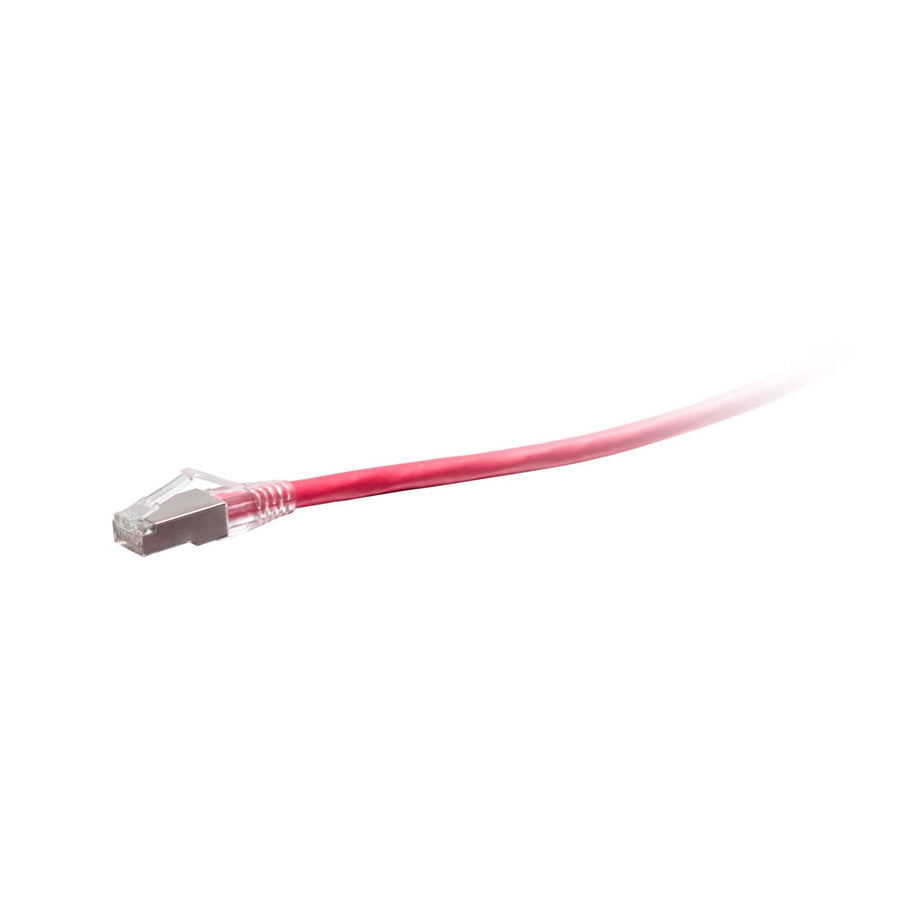

30ft (9.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
30ft TAA-compliant Cat6a shielded STP patch cable, red, snagless RJ45 connectors for 10GBase-T applications
The C2G43891 is a 30 ft (9.1 m) TAA-compliant Cat6a shielded STP network cable finished in red for easy color-coding within complex rack environments. Built with made-in-the-USA copper cabling, this snagless patch cable is designed for 10GBase-T ports and high-speed equipment including switches, routers, hubs, and network adapters. The shielded STP construction, featuring an aluminum foil shield, is engineered to protect high-speed 10 Gigabit Ethernet connections from EMI, RFI, and alien crosstalk, significantly reducing impedance and structural return loss (SRL). Each cable features 50-micron gold-plated contacts to maintain signal integrity and a snagless RJ45 connector design that protects the clips from damage during high-frequency insertion cycles. This CMR-rated, riser-application cable utilizes stranded copper conductors and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is suitable for bandwidth-intensive voice, data, and video distribution in environments requiring strict TAA compliance, such as US government projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438915 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43891 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBase-T ports and meets ANSI/TIA-568.2-D standards to support 10 Gigabit Ethernet applications.
What type of shielding does this cable use to prevent interference?
The C2G43891 uses a shielded STP (Shielded Twisted Pair) design with aluminum foil to protect against EMI, RFI, and alien crosstalk.
What is the purpose of the snagless connector on this cable?
The snagless RJ45 connector is designed to protect the clips from being snapped off during installation or high-frequency insertion cycles.
Does this cable support vertical riser installations?
Yes, this cable features a CMR-rated jacket, making it suitable for riser applications in voice, data, and video distribution.
