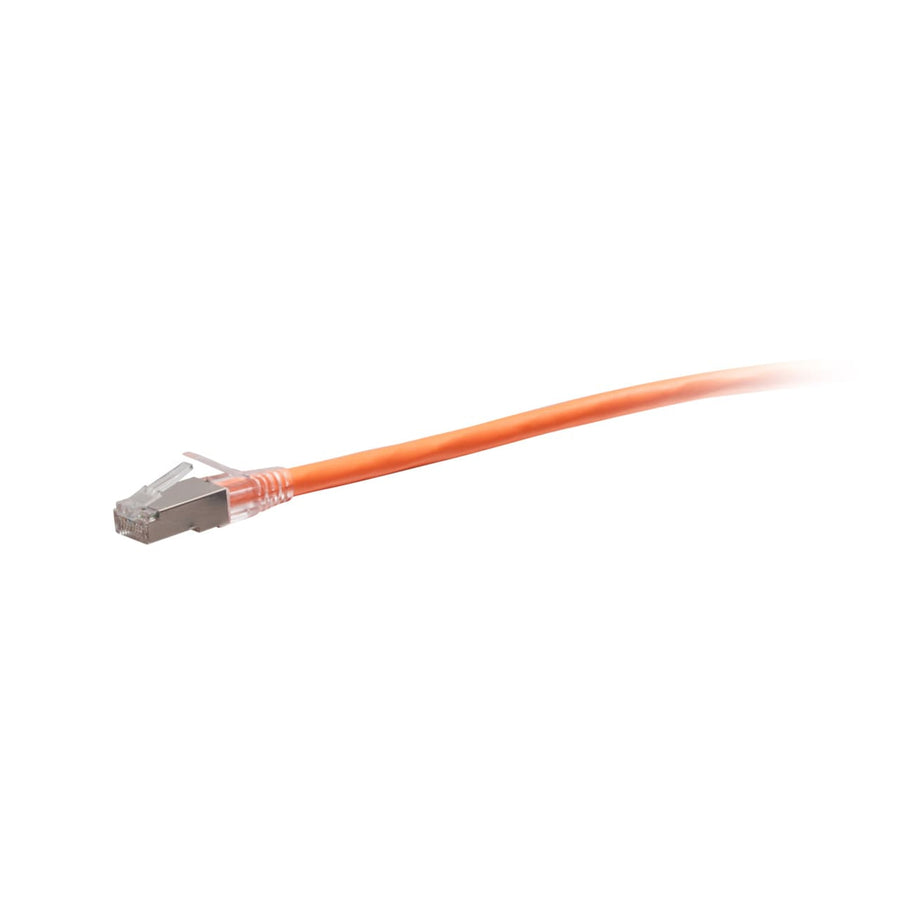

30ft (9.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
30 ft Cat6a STP snagless patch cable, orange, TAA-compliant for 10GBase-T networks
The C2G43933 is a 30 ft (9.1 m) TAA-compliant Cat6a snagless shielded (STP) network cable in orange. This passive cable is specifically engineered for high-speed 10GBase-T environments, including connections for network adapters, switches, routers, hubs, and patch panels. By utilizing an aluminum foil shield and stranded copper conductors, this cable protects critical 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is constructed with high-quality, made-in-the-USA raw cable to ensure reliable performance for bandwidth-intensive voice, data, and video distribution applications. This cable features snagless RJ-45 connectors that protect the clips from damage during high insertion cycles and includes 50-micron gold-plated contacts for maximum signal integrity. The jacket is CMR rated and riser rated for safe installation in vertical pathways. It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for United States government projects requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439332 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43933 TAA compliant?
Yes, this is a TAA-compliant F-Series cable approved for use in United States government projects and facilities.
Can this cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T equipment and supports bandwidth-intensive 10 Gigabit Ethernet applications.
What is the shielding type for this orange patch cable?
The C2G43933 uses a shielded STP (Shielded Twisted Pair) construction with aluminum foil to protect against EMI and alien crosstalk.
What is the jacket rating for this cable?
This cable features a CMR rated, riser rated PVC jacket suitable for vertical applications.
Does this cable include snagless connectors?
Yes, it features a snagless RJ-45 connector design intended to protect the clips from being snapped off during installation or frequent use.
