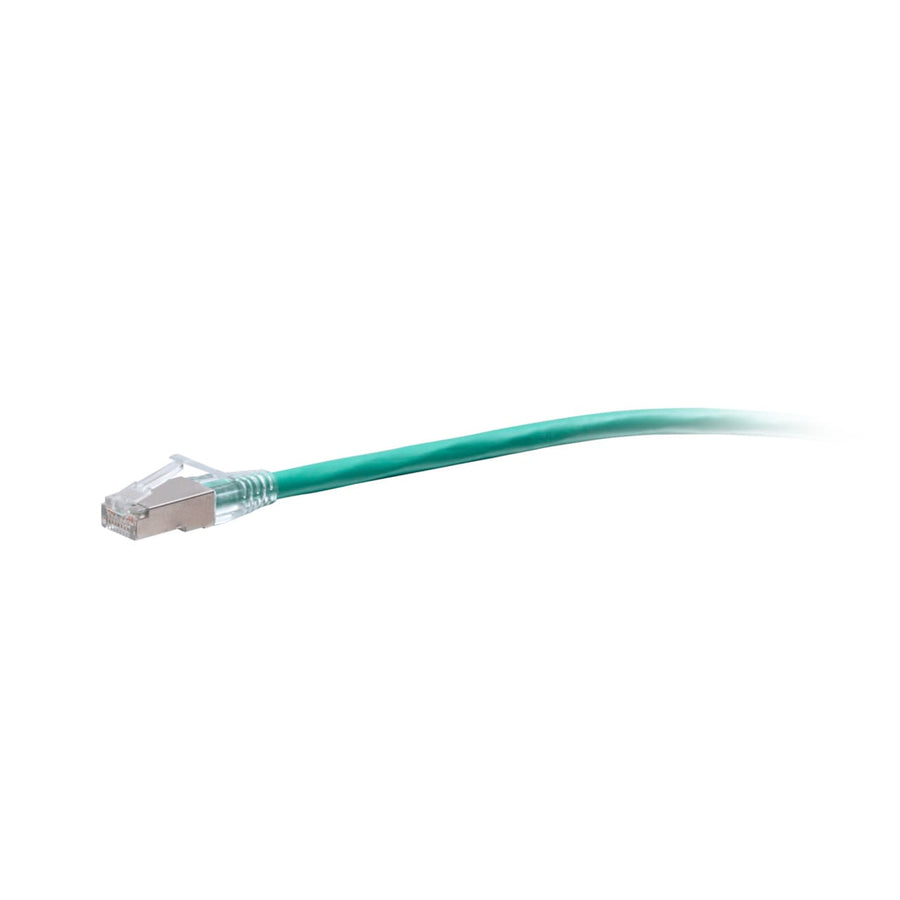

30ft (9.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
30ft Green TAA-compliant Cat6a shielded patch cable for 10GBASE-T high-speed networking applications
The C2G43870 is a 30 ft (9.1 m) TAA-compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in green. This passive cable is built for high-speed 10GBASE-T environments, providing protection against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It utilizes stranded copper conductors and is constructed with high-quality, made in the USA raw cable to ensure consistent, reliable performance. This CMR-rated, riser-rated cable features a PVC jacket and 50-micron gold-plated contacts on the RJ-45 male connectors to maintain signal integrity. The snagless design protects the clips from snapping during high-insertion cycles, making it suitable for switches, routers, and hubs. Designed to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, this cable is approved for use in United States government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438700 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43870 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum bandwidth capability of this cable?
This Cat6a cable supports 10GBASE-T (10 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
What type of shielding does this patch cable use?
The C2G43870 features Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter interference.
Can this cable be used in riser applications?
Yes, this cable is CMR rated and specifically designated for riser jacket applications.
What is the connector type for this network cable?
This cable is equipped with two RJ-45 male connectors featuring 50-micron gold-plated contacts.
