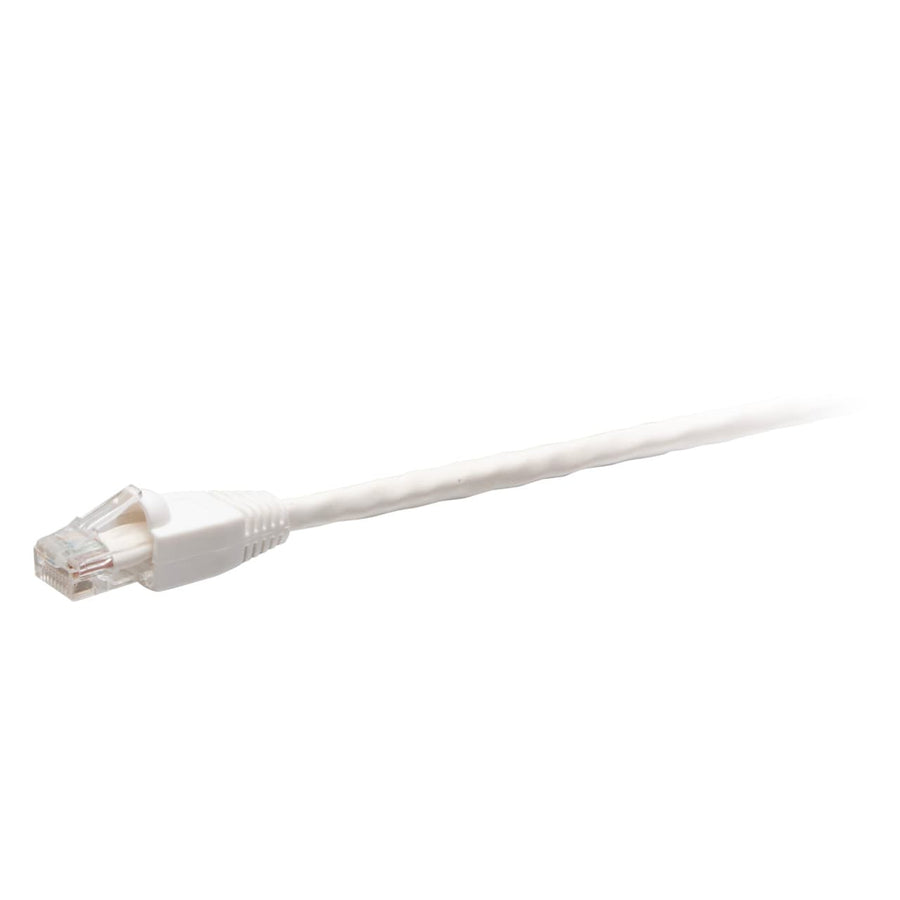

30ft (9.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
30 ft (9.1 m) White Cat6 Unshielded UTP network cable, TAA-compliant, featuring snagless RJ-45 connectors and CMR rated jacket
The C2G43585 is a 30 ft (9.1 m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in white. Designed to meet the stringent requirements of United States government projects and facilities, this cable is TAA compliant and constructed with high-quality, made-in-the-USA copper cabling. It supports a wide variety of networking applications, including 1000BASE-T (1 Gigabit Ethernet), providing an enhanced 600 MHz maximum frequency for reliable performance. The cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity. The snagless RJ-45 male connectors include a molded boot that prevents clips from snapping off during high-cycle insertion and provides additional strain relief. This CMR rated riser cable is designed for use with network adapters, hubs, switches, routers, and servers. The white PVC jacket makes it easy to identify in organized rack environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435853 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43585 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum frequency and data rate support for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
Does this cable have a warranty?
Yes, this C2G network cable comes with a lifetime warranty.
What is the difference between the snagless design and standard RJ-45 connectors?
The molded snagless boot protects the connector clips from being snapped off during installation or high-frequency use, providing extra strain relief.
Can I use this cable in a riser application?
Yes, this cable features a CMR rated jacket, making it suitable for riser applications.
