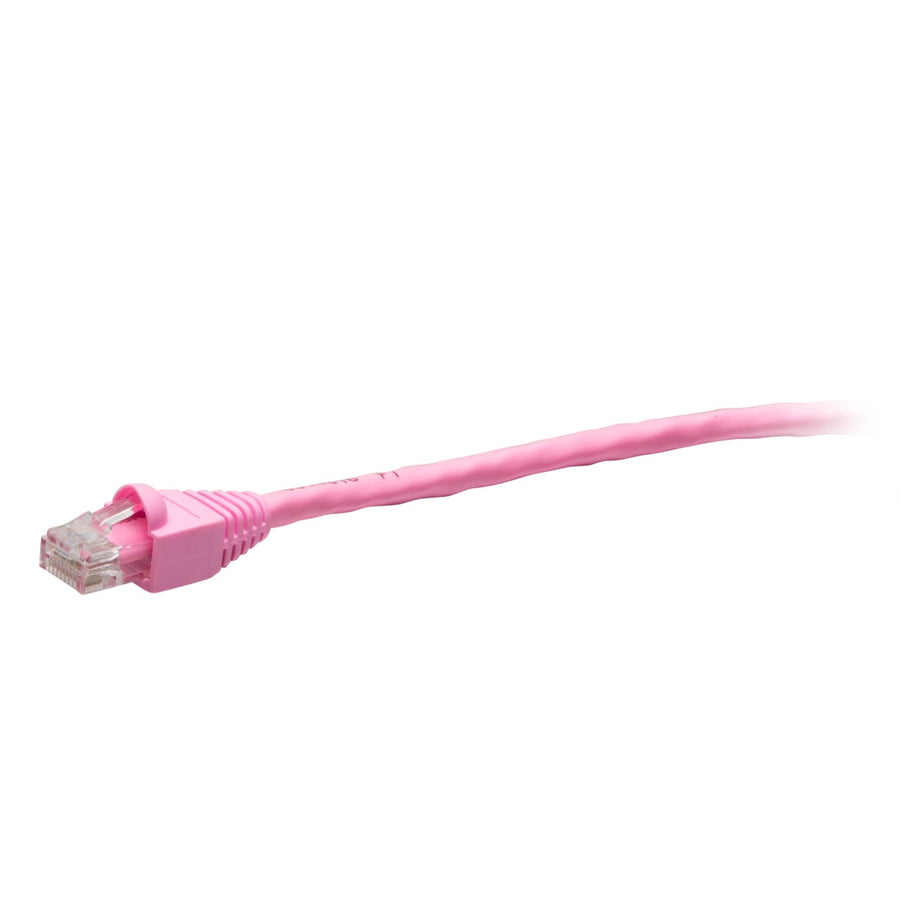

30ft (9.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
30ft (9.1m) Pink Cat6 Snagless UTP cable, TAA-compliant and CMR rated for professional network installations
The C2G43606 is a 30 ft (9.1 m) TAA-compliant Cat6 Snagless Unshielded (UTP) Network Cable in Pink, specifically engineered for use in United States government projects and facilities. This passive cable utilizes high-quality, made in the USA copper cabling with stranded conductors to ensure reliable performance for high-bandwidth applications, including 1000BASE-T (1 Gigabit Ethernet). It features an enhanced 600 MHz maximum frequency to exceed standard Cat6 performance. The cable is CMR rated with a PVC jacket, making it suitable for riser applications. For ease of installation and maintenance in high-insertion environments, the design includes a molded, snagless boot to protect the RJ-45 clips and provide extra strain relief. Each end is terminated with an RJ-45 Male connector featuring 50-micron gold-plated contacts to maintain signal integrity. This cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436065 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43606 TAA compliant?
Yes, this Cat6 cable meets TAA compliant requirements for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency and is rated for 1000BASE-T (1 Gigabit Ethernet) applications.
What type of installation environment is this cable suitable for?
This is a CMR rated cable with a PVC jacket, making it suitable for riser applications.
How does the snagless design benefit installation?
The molded, snagless boot protects the RJ-45 connector clips from being snapped off, providing extra strain relief during installation.
What is the wire gauge and conductor material?
This cable uses 24 AWG stranded copper conductors with 50-micron gold-plated contacts.
