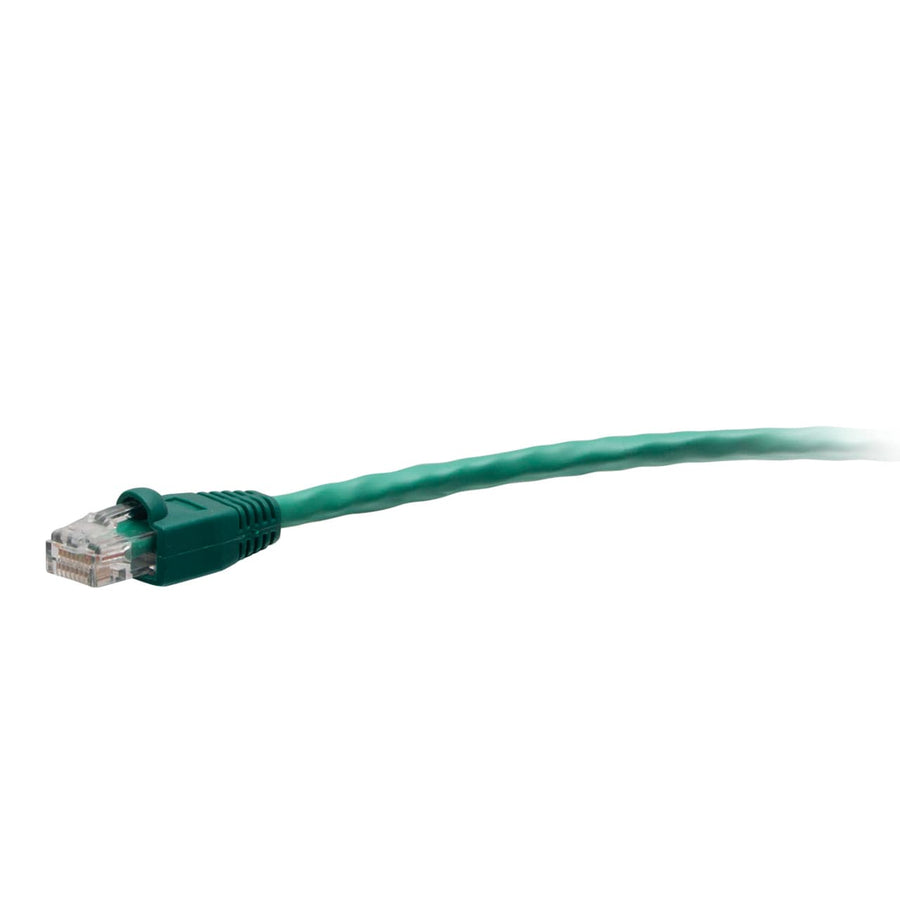

30ft (9.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
30ft (9.1m) green Cat6 UTP network cable, TAA-compliant, CMR rated, with snagless RJ-45 male connectors
The C2G43501 is a 30ft (9.1m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable in green. Designed for high-performance data transmission, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. It is constructed with high-quality, made in the USA copper stranded conductors and features a 600 MHz maximum frequency for enhanced performance compared to standard Cat6 cables. The cable utilizes a 24 AWG wire gauge and is terminated with RJ-45 male connectors featuring 50-micron gold-plated contacts to ensure signal integrity. To prevent accidental disconnection during installation, the snagless boot design protects the clips from snapping. This CMR rated riser cable features a PVC jacket and is designed for use in network adapters, hubs, switches, routers, and servers. It operates reliably within a temperature range of -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435013 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G43501 TAA compliant for government contracts?
Yes, this C2G43501 cable meets TAA-compliant requirements and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency for improved performance.
What type of jacket rating does this cable have?
This is a CMR rated riser cable with a PVC jacket, suitable for standard indoor installation requirements.
How does the snagless design benefit the installer?
The molded, snagless boot protects the RJ-45 clips from being snapped off, making it ideal for applications with high insertion cycles.
Does this cable use solid or stranded copper conductors?
The C2G43501 uses stranded copper conductors with a 24 AWG wire gauge to provide reliable network connectivity.
