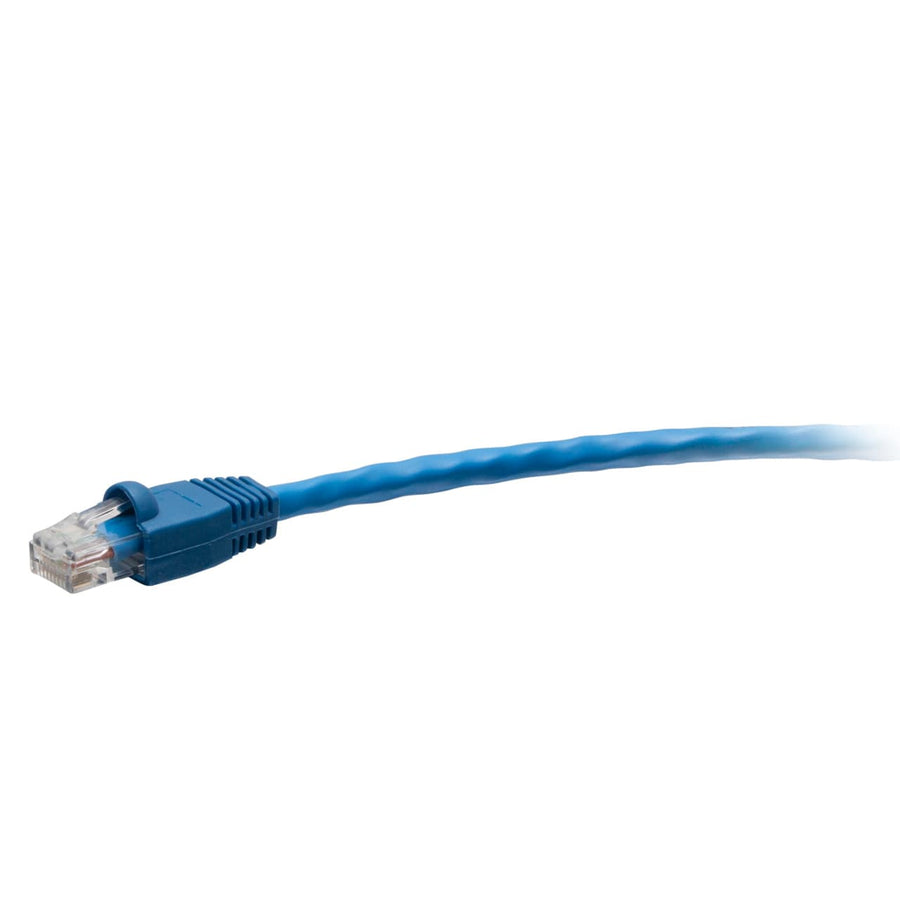

30ft (9.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Blue
30ft TAA-compliant Cat6 unshielded network cable in Blue, featuring a snagless design and 24 AWG stranded copper conductors
The C2G43459 is a 30ft (9.1m) TAA-compliant Cat6 network cable designed for use in United States government projects and facilities. This unshielded UTP cable is engineered for connectivity between network adapters, hubs, switches, routers, and servers. It features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity. The snagless RJ-45 connector design includes a molded boot that protects the clips from snapping, making it suitable for applications with high insertion cycles. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) with an enhanced 600 MHz maximum frequency. It is rated for riser applications (CMR) and utilizes a PVC jacket. This blue cable is part of the TAA-Compliant F-Series and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434597 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43459 TAA compliant?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What is the jacket rating for this cable?
This is a CMR rated cable designed for riser jacket applications.
Does this cable have snagless connectors?
Yes, it features a molded snagless boot that protects the RJ-45 clips from being snapped off during installation.
What is the warranty for the C2G43459?
This product is covered by a lifetime warranty.
