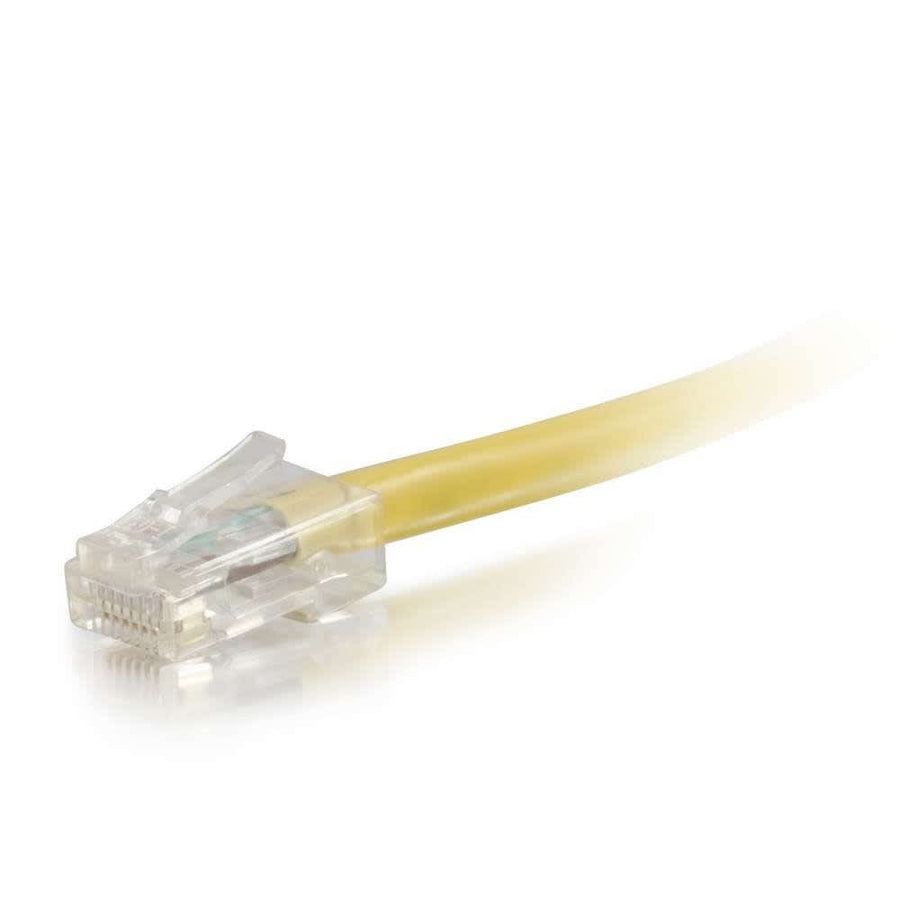

30ft (9.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
30ft (9.1m) yellow Cat6 UTP patch cable, unshielded stranded copper with T568B wiring
The C2G CG04184 is a 30ft (9.1m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive data, voice, or video distribution in fast Ethernet and Gigabit networks. This cable features stranded copper conductors and a 0.24 in (6 mm) cable diameter. Built to meet all Cat6 TIA/EIA standards, it is engineered to reduce impedance and structural return loss (SRL) by bonding individual pairs together to maintain twist-spacing through the termination point. This construction helps minimize Near-End Crosstalk (NEXT) levels. This specific SKU features a yellow PVC jacket and uses a T568B wiring scheme. It is a non-booted cable type with RJ-45 male connectors on both ends. The cable is rated for temperatures up to 75°C and is suitable for high-performance networking environments where color-coding is required for organized cable management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041849 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
Is the C2G CG04184 a shielded or unshielded cable?
The CG04184 is an unshielded UTP (UTP) category cable with a 0.24 in (6 mm) diameter.
What is the wiring scheme for the C2G CG04184 patch cable?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors.
What is the maximum temperature rating for this cable?
This Cat6 cable is rated for temperatures up to 75°C.
Does this cable support Gigabit network applications?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks requiring high bandwidth.
What are the material specifications for the C2G CG04184?
The cable features stranded copper conductors and a PVC jacket material.
