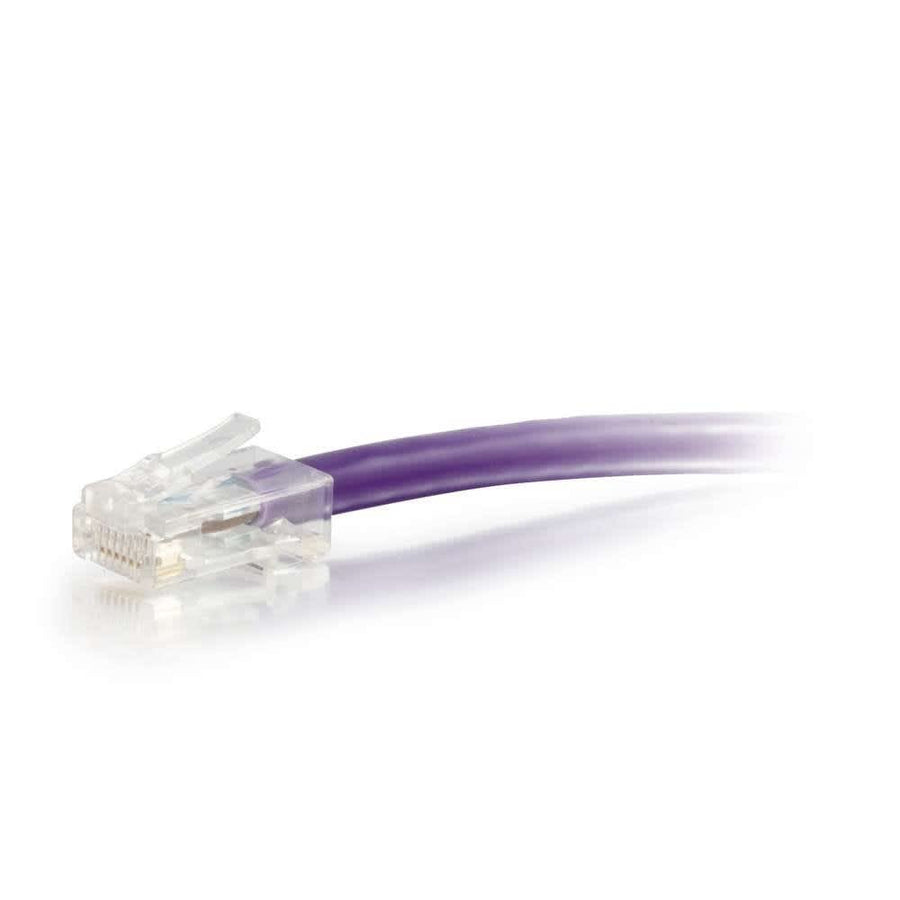

30ft (9.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
30ft Purple Cat6 UTP patch cable, non-booted, featuring stranded copper conductors and T568B wiring
The C2G CG04226 is a 30ft (9.1 m) Cat6 Non-Booted UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, or video distribution applications. This unshielded cable meets all Cat6 TIA/EIA standards, helping to drastically reduce structural return loss (SRL) and impedance. It features 24 AWG stranded copper conductors that minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the line up to the termination point. The cable utilizes a PVC jacket and is rated for temperatures up to 75°C. This purple-jacketed cable uses a T568B wiring scheme and features RJ-45 male connectors on both ends. As a non-booted design, the connectors are streamlined for space-constrained environments. This cable is ideal for Gigabit computer networks where color-coding is required to distinguish different network segments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.77 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042266 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
Is the C2G CG04226 suitable for Gigabit Ethernet?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for data or video.
What is the wiring configuration for this patch cable?
The CG04226 follows the T568B wiring scheme and features RJ-45 male connectors on both ends.
How does the construction of this Cat6 cable affect signal integrity?
Each pair is bonded together to maintain twist-spacing to the termination point, which helps reduce impedance and structural return loss (SRL).
What is the temperature rating for the CG04226 cable jacket?
The PVC jacket material is rated for operation up to a maximum temperature of 75°C.
Are there other color options available for this cable series?
Yes, this cable is part of a series that includes multiple color options such as Black, Blue, Gray, Green, Orange, Pink, and Red.
