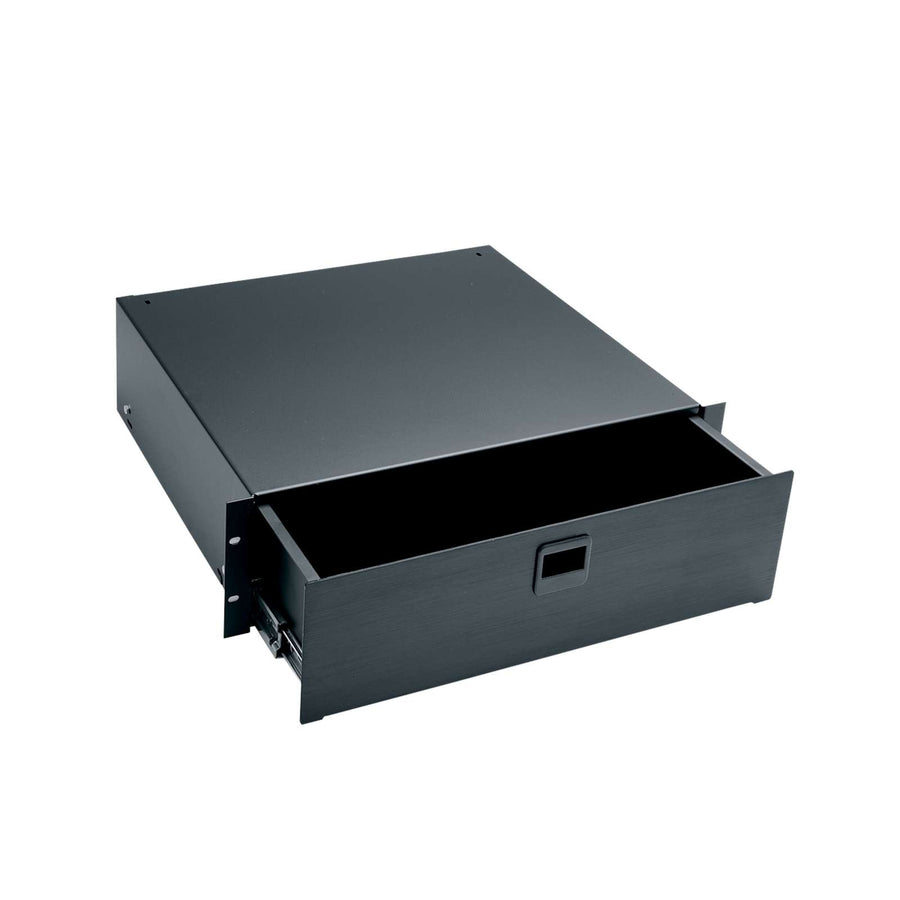

3 RU Rackmount Drawer, Black Brushed and Anodized
Heavy-duty 3 RU rackmount storage drawer with a 50 lbs UL load capacity and black brushed and anodized finish
The Middle Atlantic D3 is a heavy-duty 3 RU rackmount drawer designed for secure equipment storage within professional AV racks. Constructed from rugged steel, this drawer features a black brushed and anodized face finish for a professional appearance. It is engineered to handle significant weight, boasting a UL load capacity of 50 lbs (22.7 kg). This unit includes a spring-loaded latch for reliable access and features a rear cable grommet to facilitate easy cable management. For additional protection of sensitive components, the FI-3 3 RU Foam Drawer Insert is available as a compatible accessory. The D3 is part of the D-TD Heavy Duty Drawer series, which offers different mounting options including various rack unit heights and finishes such as textured black powder coat.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.45 in (39.2 cm) |
| Height | 5.25 in (13.3 cm) |
| Product Weight | 12.14 lbs (5.5 kg) |
| Rack Units | 3 RU |
| Shipping Weight | 17.71 lbs (8 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Finish | Brushed and Anodized |
| Lock | No |
| Material | Steel |
| Mounting Points | 2 |
| UPC | 656747004414 |
Resources
You'll need these with it
Questions about this part
What is the weight capacity for the Middle Atlantic D3?
The D3 features a UL load capacity of 50 lbs (22.7 kg).
What accessories are compatible with the D3 drawer?
You can use the FI-3 3 RU Foam Drawer Insert to provide extra protection for items stored inside the drawer.
Does the D3 drawer include a way to manage cables?
Yes, this model includes a rear cable grommet to allow cables to pass through to the back of the rack.
What are the dimensions of the D3?
The drawer has a height of 5.25 in (13.3 cm), a width of 19 in (48.3 cm), and a depth of 15.45 in (39.2 cm).
How does the D3 differ from other drawers in the D-TD series?
The D3 is the 3 RU variant of this series; other options in the D-TD line offer different rack unit heights and a textured black powder coat finish.
