3 RU Rack Vent Panel, Light Blocking with 64% Open Area
3 RU vented light blocking panel with 64% open area and flanged steel construction

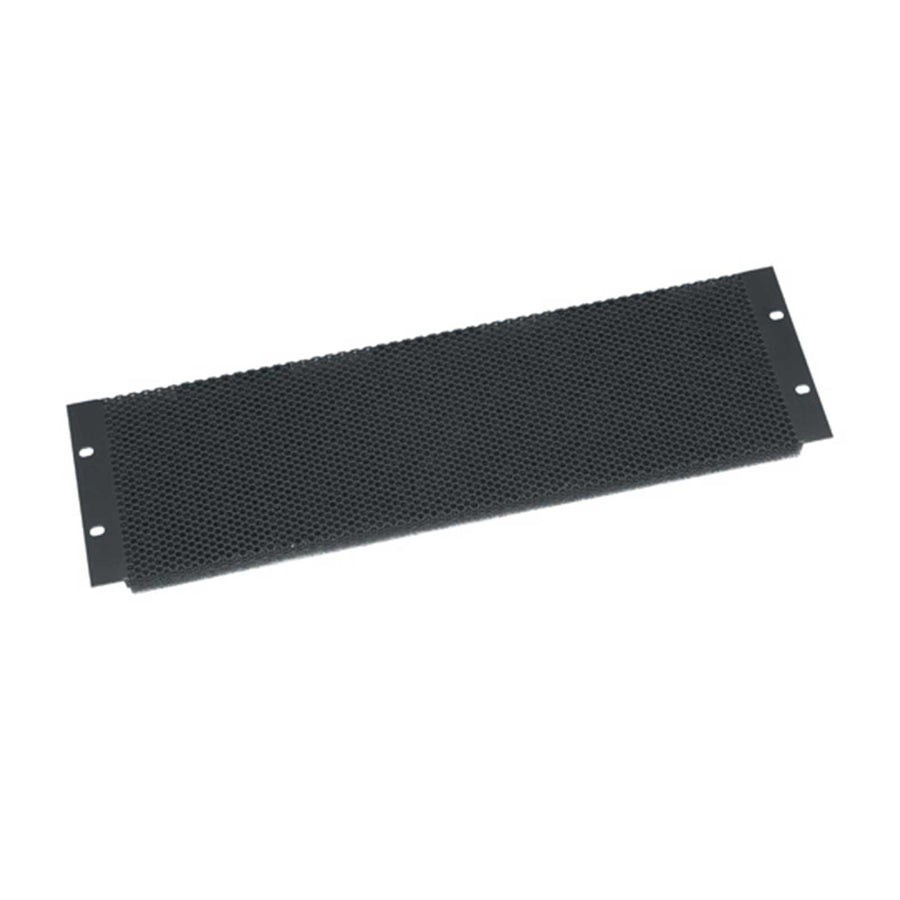

The Middle Atlantic VTB-3 is a 3 RU rackmount vent panel designed to balance high-volume airflow with visual concealment. This flanged steel panel features 64% open area to ensure superior ventilation for equipment while using pre-installed light blocking material to obstruct the view of internal rack wiring and cables. Constructed from sturdy steel with a flat black powder coat finish, this 19-inch wide panel is TAA compliant. It provides a professional aesthetic for rack enclosures by masking the internal components and cabling without restricting necessary airflow to heat-sensitive hardware.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Depth | 1.05 in (2.7 cm) |
| Height | 5.25 in (13.3 cm) |
| Package Count | 1 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 0.82 lbs (0.4 kg) |
| Vent Open Area Percentage | 64 % |
| Width | 19 in (48.3 cm) |
All other specifications 6
| Color | Black |
| Finish | Flat Powder Coat |
| Light Blocking | Yes |
| Material | Steel |
| Style | Flanged |
| UPC | 656747068553 |
Questions about this part
Does the VTB-3 provide enough airflow for high-heat equipment?
Yes, this panel is designed with 64% open area to provide superior ventilation for your rack components.
How does this panel help with rack aesthetics?
The VTB-3 includes pre-installed light blocking material, which helps to hide the view of internal wiring and cabling within the rack.
Is the VTB-3 a flanged or unflanged panel?
The VTB-3 is a flanged style panel constructed from sturdy steel.
What is the difference between the VTB-3 and other VTB series panels?
This SKU is the 3 RU version of the VTB series, which is also available in 1 RU and 2 RU heights.
Is this panel TAA compliant for government contracts?
Yes, the VTB-3 is TAA compliant.
