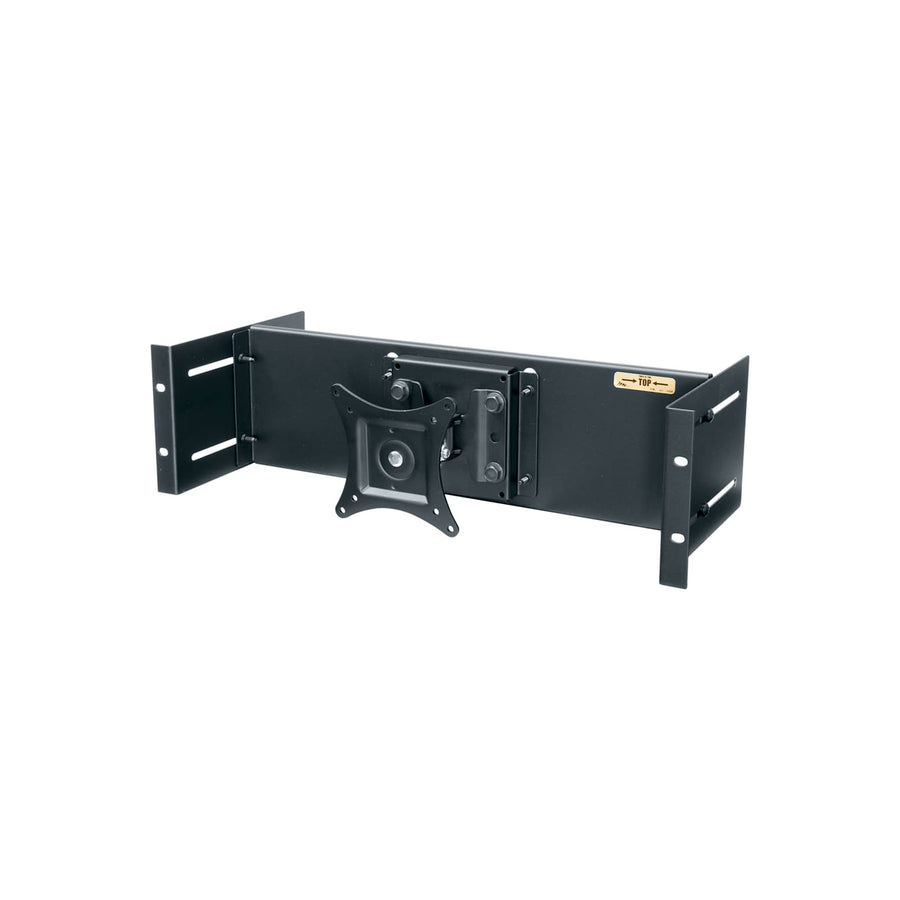

3 RU Pivot/Tilt LCD Rackmount
3 RU pivot/tilt rackmount panel for 15" to 19" monitors with VESA 75 and VESA 100 support
The RM-LCD-PNLK is a 3 RU Middle Atlantic rackmount solution designed to secure LCD monitors within a standard rack. This pivot/tilt style panel provides generous front-to-back adjustment to assist with screen positioning and viewing angles. Built with sturdy steel construction, the unit supports a weight capacity of 27 lbs (12.2 kg). It is designed for versatile screen mounting, accommodating standard VESA 75 and VESA 100 patterns. This specific SKU is intended for monitors ranging from 15" to 19" in size, and can also accommodate some 20" monitors. For projects requiring different vertical footprints, this series is also available in 2 RU and 9 RU configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 8.2 in (20.8 cm) |
| Height | 5.25 in (13.3 cm) |
| Rack Units | 3 RU |
| Weight Capacity | 27 lbs (12.2 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| Style | Pivot/Tilt |
| UPC | 656747123887 |
Resources
Questions about this part
Will the RM-LCD-PNLK fit my monitor?
This 3 RU panel fits LCD screens from 15" to 19", and it can also accommodate some 20" monitors.
What VESA patterns are compatible with this mount?
The RM-LCD-PNLK supports both VESA 75 and VESA 100 mounting patterns for versatile installation.
What is the maximum weight capacity for this panel?
The unit has a weight capacity of 27 lbs (12.2 kg).
What is the difference between this and the other RM-LCD models?
This SKU is the 3 RU pivot/tilt version; other models in the RM-LCD series offer different rack unit heights, such as 2 RU or 9 RU.
Which document should I use for submittals?
You can use the RM-LCD Series LCD Rackmount A&E Specification Sheet for technical submittals.
