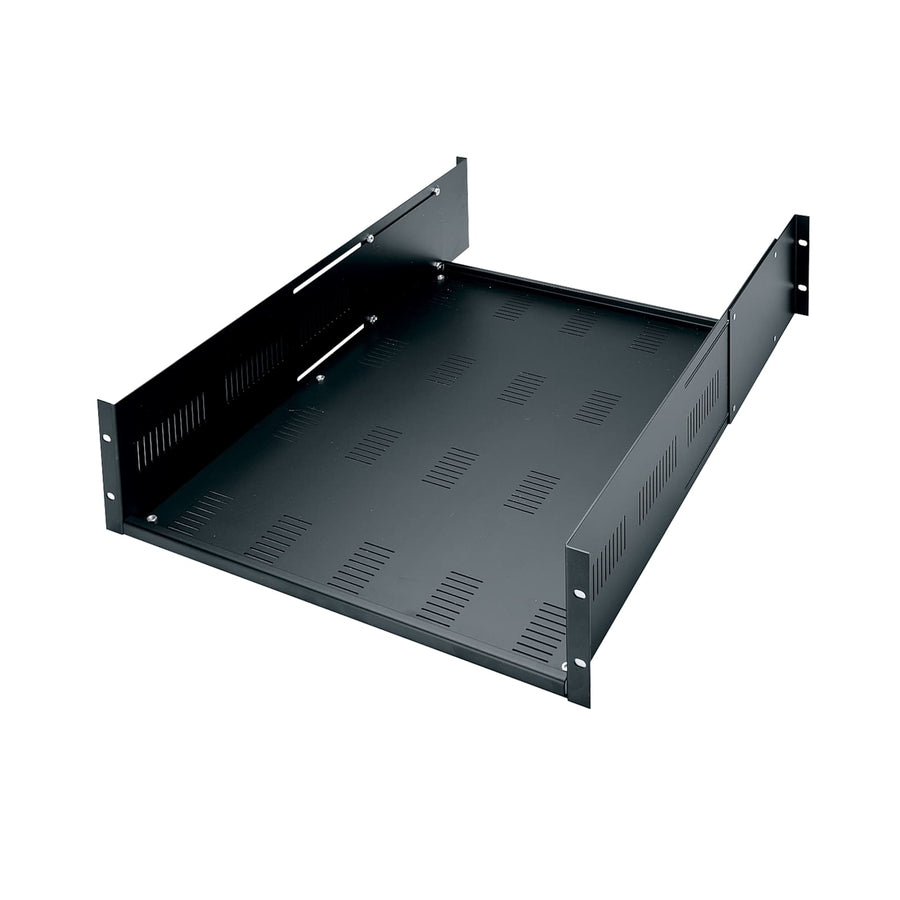

3 RU Adjustable Rackshelf, 19.5 to 28 Inches Deep
3 RU heavy-duty adjustable rackshelf with 300 lb capacity and a 19.5 to 28 inch depth range
The Middle Atlantic AS3-22 is a 3 RU adjustable rackshelf designed to accommodate heavy equipment such as video decks and tower CPUs. This heavy-duty, 4-point mounting shelf features a vented surface to assist with component cooling. It is built to support a weight capacity of 300 lbs (136 kg), and is UL Listed for safety. The shelf offers a versatile mounting adjustment range from 19.5 in (49.5 cm) to 28 in (71.1 cm) deep, making it suitable for various equipment depths. This unit is shipped flat to save space during transit and arrives ready-to-assemble with the necessary hardware. To ensure proper installation, the rack must have a minimum depth of 25" overall and a minimum of 19.5" from the front to the rear rails.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 19.5 in (49.5 cm) |
| Height | 5.25 in (13.3 cm) |
| Mounting Depth Max | 28 in (71.1 cm) |
| Mounting Depth Min | 19.5 in |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 16.4 lbs (7.4 kg) |
| UL Load Capacity | 500 lbs (226.8 kg) |
All other specifications 5
| Weight Capacity | 300 lbs (136 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 4 |
| UPC | 656747002090 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the AS3-22 fit in my rack?
The AS3-22 requires a rack with a minimum overall depth of 25" and a minimum distance of 19.5 in (49.5 cm) between the front and rear rails.
What is the maximum weight capacity for the AS3-22?
The shelf has a weight capacity of 300 lbs (136 kg) and is UL Listed with a UL load capacity of 500 lbs (226.8 kg).
What kind of equipment can I mount on this shelf?
The vented design and adjustable depth make it suitable for most video decks and tower CPUs within the 19.5 in to 28 in mounting range.
Is the AS3-22 TAA compliant?
Yes, the AS3-22 is TAA compliant and is UL Listed.
Can I add active cooling to this shelf?
Yes, the AS3-22 is compatible with several component coolers, including the COMP-COOL50 and ICOMP-COOL series.
