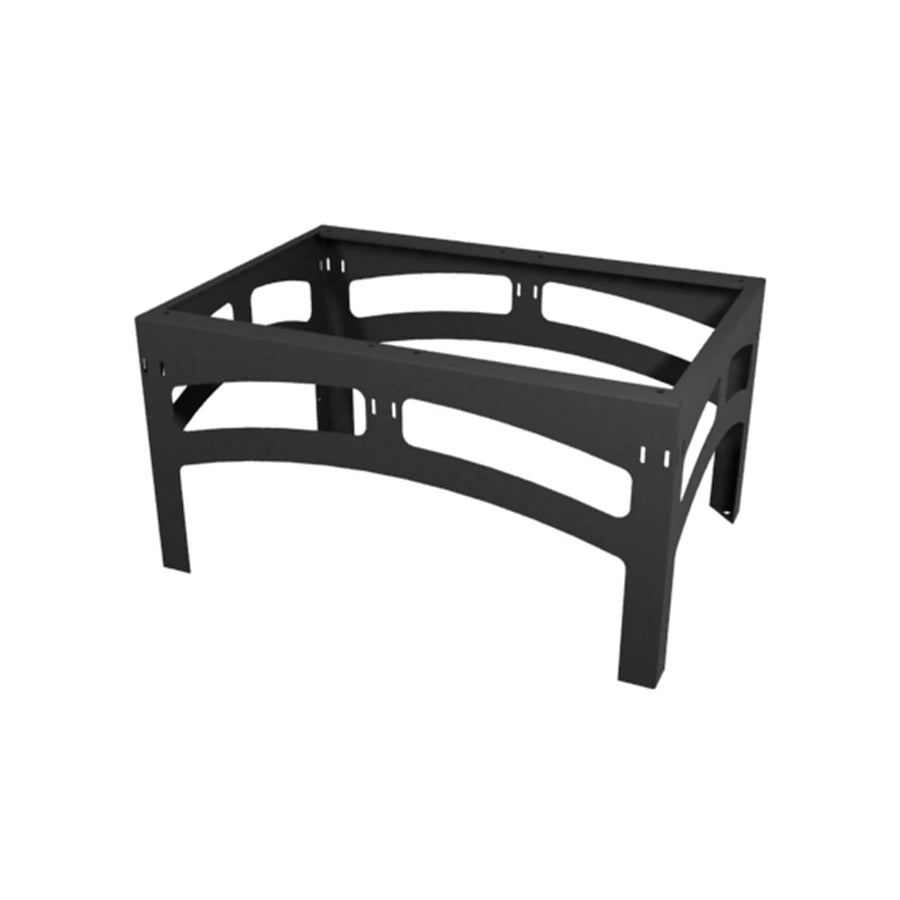

3 Bay Seismic Riser Base for 32 Inch Deep BGR Racks
3-bay seismic riser base for 32 in (81.3 cm) deep BGR racks with a 2450 lbs (1111.3 kg) capacity
The SRB-3-BGR-3224 is a 3-bay seismic riser base designed specifically for use with 32 in (81.3 cm) deep BGR series racks. This heavy-gauge welded steel component provides a critical foundation for seismic-rated installations, offering a 2450 lbs (1111.3 kg) weight capacity. It is engineered to serve as a lower cable chase, allowing installers to pass cabling efficiently between the racks. This base facilitates field rough-in, allowing for the installation of the foundation before the actual racks and enclosures arrive on site. For compliance and structural verification, this unit is ASCE 7-10 compliant and holds OSHPD number 96-01027.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 2450 lbs (1111.3 kg) |
| Width | 69.06 in (175.4 cm) |
| Base Series | BGR |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 3 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747139857 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 2450 lbs (1,111.3 kg) |
Resources
Questions about this part
Which rack series is this riser base compatible with?
The SRB-3-BGR-3224 is designed for use with the 32 in (81.3 cm) deep BGR series of Middle Atlantic racks.
What is the seismic load capacity for this 3-bay base?
This unit has a seismic load capacity of 2450 lbs (1111.3 kg) and complies with ASCE 7-10 standards.
How does this base assist with installation logistics?
The base allows for field rough-in prior to the arrival of the racks and enclosures, and it acts as a lower cable chase for passing cables between racks.
Does this product meet OSHPD requirements?
Yes, this riser base is OSHPD rated under number 96-01027.
What is the physical footprint of the SRB-3-BGR-3224?
The base features a width of 69.06 in (175.4 cm) and a height of 24 in (61 cm).
