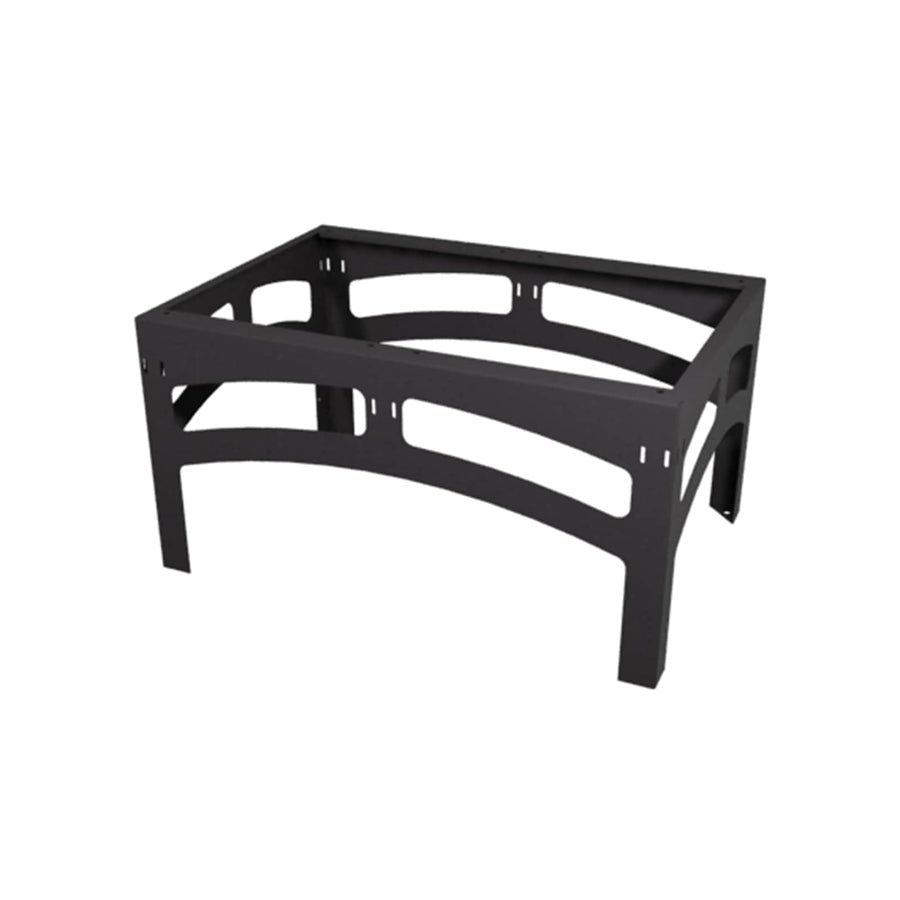

3 Bay Seismic Riser Base for 31 Inch Deep MRK, VRK Racks
3-bay seismic riser base for 31 in (78.7 cm) deep MRK or VRK racks, featuring a 2450 lbs (1111.3 kg) load capacity
The SRB-3-MRK-3124 is a seismic-rated 3-bay riser base designed specifically for use with 31 in (78.7 cm) deep MRK or VRK series racks. Constructed from heavy-gauge welded steel with a textured black powder coat finish, this component type provides a stable foundation for heavy equipment in high-seismic environments. The unit features a 2450 lbs (1111.3 kg) seismic load capacity and complies with ASCE 7-10 standards. Beyond its structural role, it acts as a lower cable chase to facilitate passing cables between racks. This base allows for field rough-in of structural requirements prior to the arrival of the actual racks and enclosures on-site, streamlining the installation workflow for system integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31 in (78.7 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 50 lbs (22.7 kg) |
| Weight Capacity | 2450 lbs (1111.3 kg) |
| Width | 66.06 in (167.8 cm) |
| Base Series | MRK or VRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 3 |
| Seismic Rated | Yes |
| UPC | 656747068287 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 2450 lbs (1,111.3 kg) |
Resources
Questions about this part
Will this base fit my existing MRK or VRK racks?
This SRB-3-MRK-3124 model is designed specifically for 31 in (78.7 cm) deep MRK or VRK series racks.
What is the seismic load capacity for the SRB-3-MRK-3124?
The seismic load capacity is 2450 lbs (1111.3 kg), meeting ASCE 7-10 requirements.
What is the purpose of the 3-bay design?
The 3-bay configuration allows the unit to act as a lower cable chase for passing cables between racks.
Is this product TAA compliant for government contracts?
Yes, this product is TAA compliant.
What documentation is available for submittals?
Installers can access the SRB Series Instruction Sheet, CAD Technical Specification Drawings, and the Seismic Certified Riser Bases A&E Specification Sheet for submittals.
