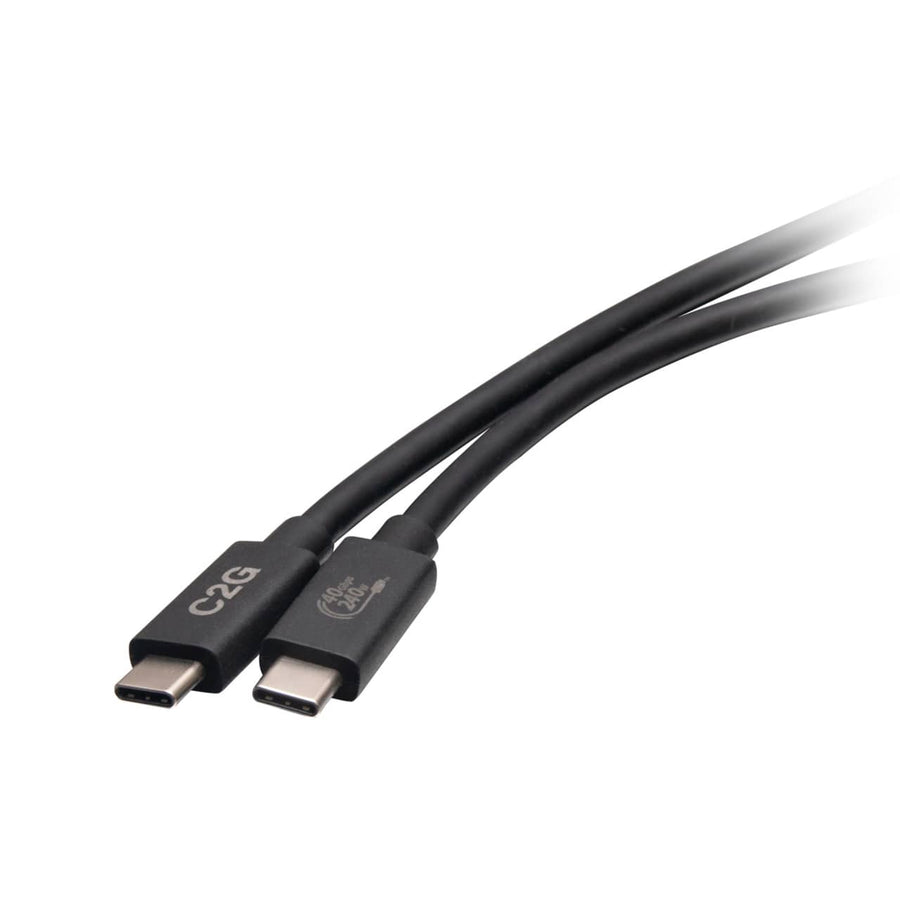

3.3ft (1m) USB 4.0 USB-C to C (48V 5A) 240W Charging Cable - Black
USB 4.0 USB-C to C cable supporting 240W power delivery, 40 Gbps data transfer, and 8K @ 60Hz video output
The C2G54552 is a high-performance USB 4.0 USB-C to C charging cable designed to meet the power demands of professional workstations and high-performance gaming laptops. This 3.3 ft (1 m) cable facilitates efficient power transfer with a maximum 240W Power Delivery capability, utilizing 48V and 5A input to ensure stable charging for power-intensive hardware. Beyond charging, the C2G54552 supports high-speed data synchronization at rates of up to 40 Gbps, making it efficient for moving large files, high-resolution video, and massive data sets in seconds. For high-resolution visual setups, the cable supports video output at 8K @ 60Hz with chroma subsampling of 4:2:0 or 4:2:2. Built with a TPE jacket rated VW-1 and gold and nickel contact plating with a 50 micron thickness, this cable is engineered for durability in professional environments, including use with high-capacity USB-C hubs and docking stations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 48 VDC |
| AC Voltage Output | 48 VAC |
| Amps | 5 Amp |
| Bend Radius | 1.95 in (49.5 mm) |
| Cable Diameter | 0.19 in (5 mm) |
| Cable Length | 3.3 ft (1 m) |
| Contact Plating Thickness | 50 micron |
| Operating Humidity Max | 85% RH (Non-Condensing) |
All other specifications 25
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Power Delivery | 240 W |
| Shield Type | F/UTPS/FTPSTPU/FTPUTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 5% RH (Non-Condensing) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | 14 Fahrenheit (-10 Celsius) |
| Wiring Scheme | T568AT568B |
| Cable Type | USB-C |
| Chroma Subsampling | 4:2:04:2:2 |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Male |
| Connector Hood Material | PVC |
| Connector Type | USB |
| Contact Plating Material | GoldNickel |
| Jacket Rating | VW-1 |
| UPC | 757120545521 |
| Video Resolution | 8K @ 60Hz |
| Certifications | Prop 65REACHRoHS |
| Data Transfer Rate | 40 GBPS |
| Jacket Material | TPE |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G54552 cable work for charging high-performance laptops?
Yes, this USB 4.0 cable is designed to support high-performance laptops that require extra power, providing up to 240W of power delivery via a 48V, 5A connection.
What video resolutions can be supported by the C2G54552?
The C2G54552 supports video output for 8K @ 60Hz with chroma subsampling options of 4:2:0 and 4:2:2.
What is the maximum data transfer speed for this cable?
This USB 4.0 cable offers data transfer rates of up to 40 Gbps, allowing for rapid synchronization of large files and media.
Is the C2G54552 compatible with Thunderbolt hardware?
Yes, the cable features universal compatibility with both USB-C and Thunderbolt devices.
What are the operating temperature limits for this cable?
The C2G54552 is rated for operating temperatures between 32° - 113°F (0° - 45°C).
