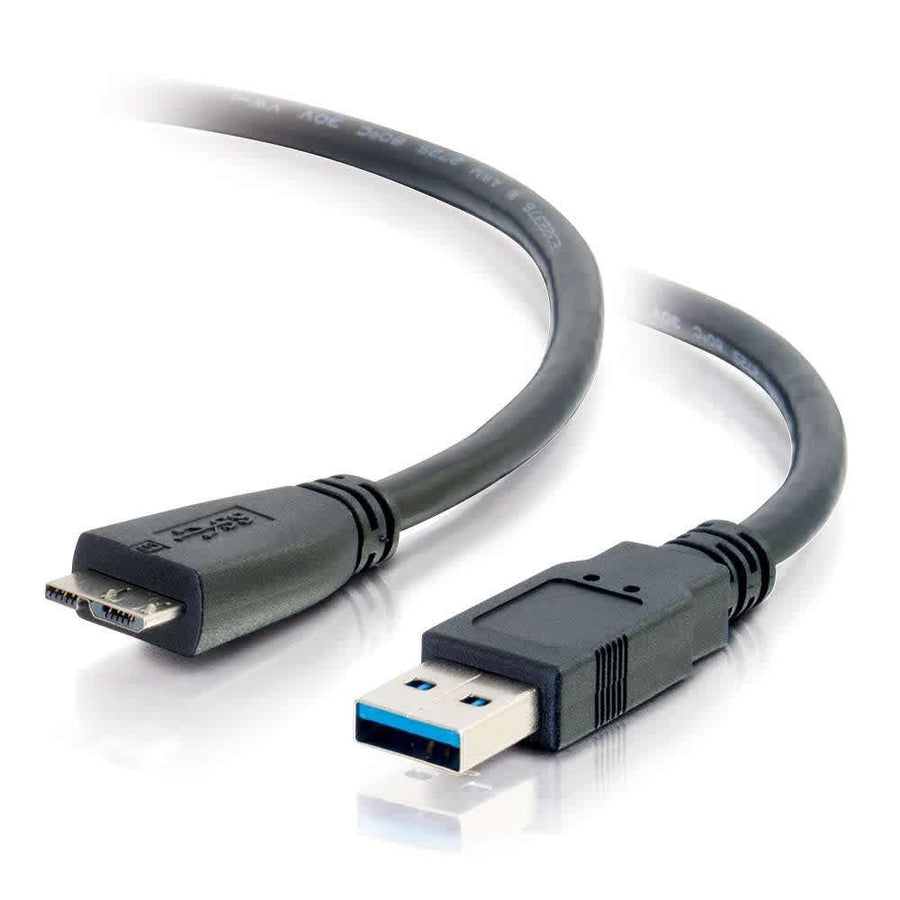

3.3ft (1m) USB 3.0 A Male to Micro B Male Cable
USB 3.0 A Male to Micro B Male cable, 3.3 ft (1 m) length, supporting 4.8 Gbps data transfer
The C2G CG54176 is a 3.3 ft (1 m) USB 3.0 A Male to Micro B Male cable designed to facilitate high-speed data transfers for various SuperSpeed USB peripherals. This cable supports a bandwidth of up to 4.8 Gbps when used with a USB 3.0 compliant host and device, offering significantly higher performance than standard USB 2.0 connections. For power delivery, this cable provides up to 900 mA, which is double the 500 mA capacity available through USB 2.0. It is constructed with a PVC jacket and features foil and braid shielding to mitigate EMI/RFI interference. The internal twisted pair construction is engineered to reduce crosstalk, ensuring error-free data transmission. The USB 3.0 A connector is color-coded blue to indicate compatibility. This cable is fully compatible with both PC and Mac systems and maintains backwards compatibility with USB 2.0 (480 Mbps) and USB 1.1 devices.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 900 mA |
| Cable Length | 3.3 ft (1 m) |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Connector 2 | (1) USB 3.0 Micro-B Male(1) USB 3.0 Micro-B Male |
| Product Type | Cable |
All other specifications 7
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120541769 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the maximum data transfer rate for the C2G CG54176?
This cable supports SuperSpeed data transfer rates of up to 4.8 Gbps when connected to a USB 3.0 compliant host and device.
Will this USB 3.0 cable work with my older USB 2.0 devices?
Yes, the Type A connections are backwards compatible with USB 2.0 and USB 1.1 devices, though speeds will be limited to 480 Mbps.
How much power can this cable deliver to my peripheral?
The CG54176 provides up to 900 mA of power, which is an increase over the 500 mA provided by standard USB 2.0 cables.
Is the C2G CG54176 TAA compliant?
No, this specific part number is not listed as TAA compliant in the manufacturer specifications.
What is the length of this USB 3.0 cable?
The cable length for this SKU is 3.3 ft (1 m).
