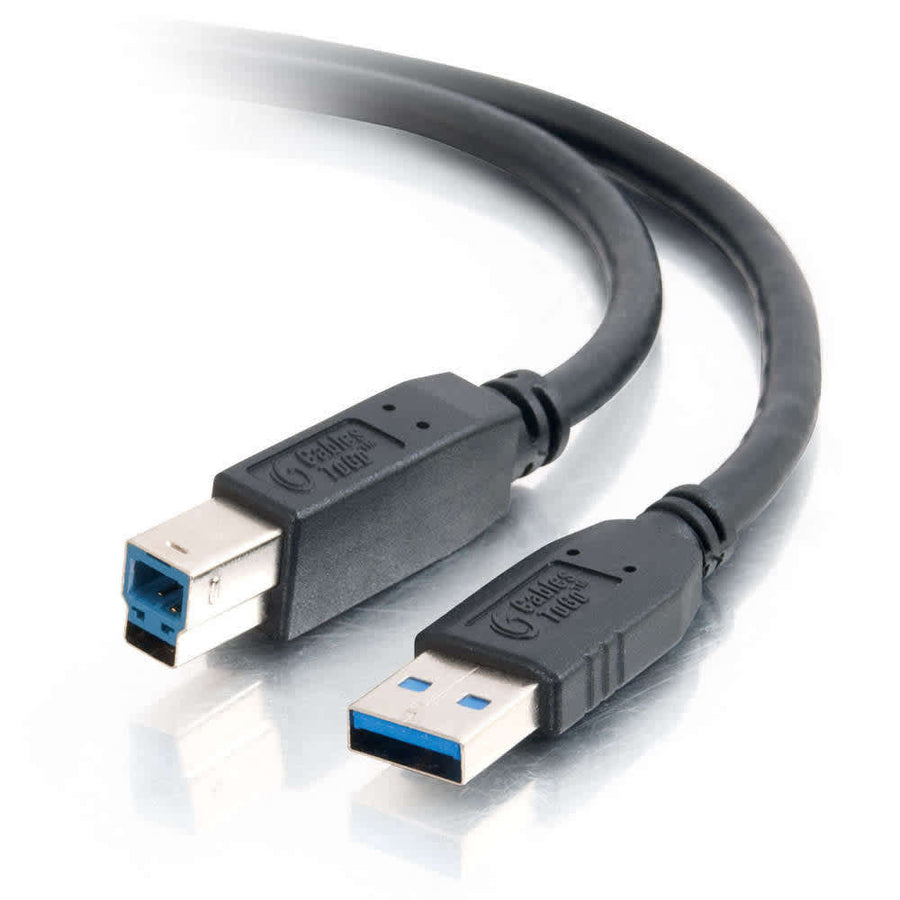

3.3ft (1m) USB 3.0 A Male to B Male Cable
3.3 ft (1 m) USB 3.0 A to B Male cable with 4.8 Gbps SuperSpeed bandwidth and 900 mA power delivery
The CG54173 is a 3.3 ft (1 m) USB 3.0 A to B Male cable designed for high-speed peripheral connectivity. This cable is intended for use with hard drive enclosures, printers, modems, cameras, and other SuperSpeed USB peripherals. Utilizing USB 3.0 technology, it supports a bandwidth of up to 4.8 Gbps and provides 900 mA of power, which is a significant increase over the 500 mA provided by USB 2.0. For installers requiring different lengths, the CG54174 and CG54175 provide 6.6 ft (2 m) and 9.8 ft (3 m) options respectively. This cable features twisted pair construction and foil and braid shielding to mitigate EMI/RFI interference and crosstalk, ensuring error-free data transfer. While the Type A connections are backwards compatible with USB 2.0 and USB 1.1 devices, maximum SuperSpeed performance requires a USB 3.0 compliant host and device.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 900 mA |
| Cable Length | 3.3 ft (1 m) |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Connector 2 | (1) USB 3.0 B Male(1) USB 3.0 B Male |
| Product Type | Cable |
All other specifications 7
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120541738 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6.6ft (2m) USB 3.0 A Male to B Male Cable
CG54174$15.99
9.8ft (3m) USB 3.0 A Male to B Male Cable
CG54175$20.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
Will the CG54173 work with my USB 2.0 hardware?
Yes, this cable is backwards compatible with USB 2.0 and USB 1.1 devices, though you will only achieve 480 Mbps transfer speeds and 500 mA of power.
How much power does this USB 3.0 cable deliver?
This cable provides up to 900 mA of power, which is double the 500 mA capacity available with standard USB 2.0 cables.
What is the maximum data transfer rate for the CG54173?
When connected to a USB 3.0 compliant host and device, this cable supports a SuperSpeed bandwidth of up to 4.8 Gbps.
Are there different lengths available for this cable series?
Yes, in addition to the 3.3 ft (1 m) CG54173, there are 6.6 ft (2 m) (CG54174) and 9.8 ft (3 m) (CG54175) versions available.
Does this cable include shielding to prevent interference?
Yes, the cable uses twisted pair construction along with foil and braid shielding to reduce EMI/RFI interference and crosstalk.
