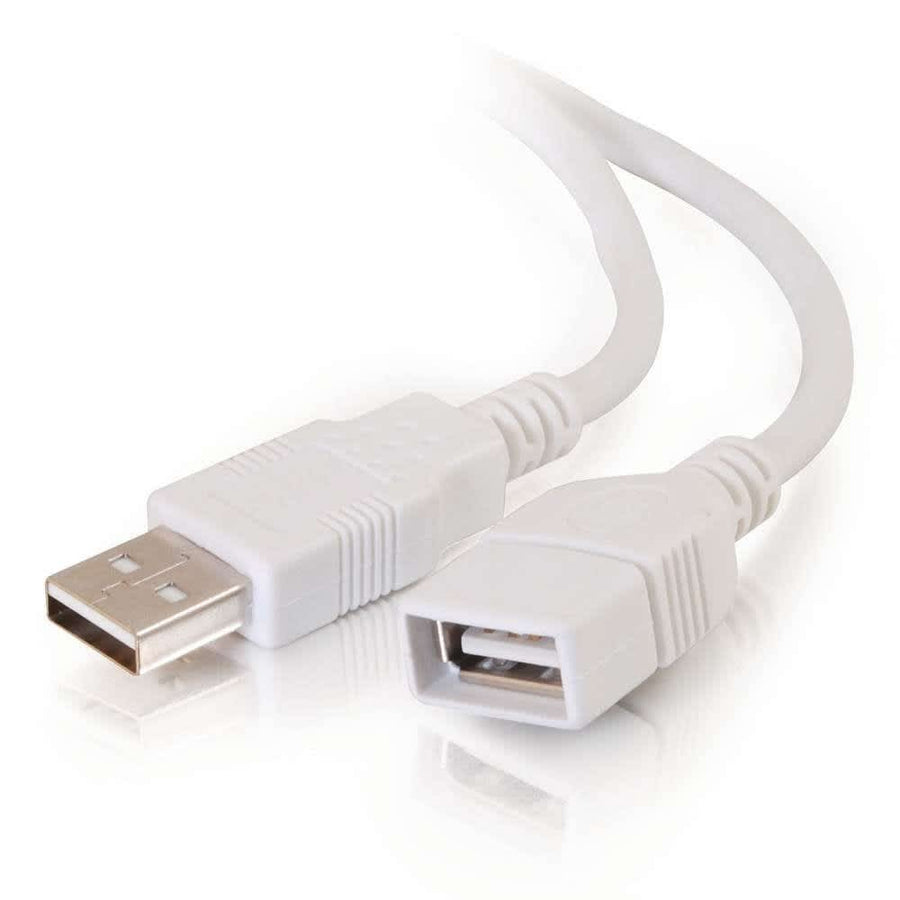

3.3ft (1m) USB 2.0 A Male to A Female Extension Cable - White
White USB 2.0 A Male to A Female extension cable, 3.3 ft (1m) length, supporting 480 Mbps data transfer
The C2G CG19003 is a 3.3 ft (1m) USB 2.0 A Male to A Female extension cable designed to increase the reach of your existing USB connections. By connecting this extension to an existing cable, you can position USB devices in a more convenient location for the user. This white cable features a PVC jacket and 24 AWG wiring, providing a reliable bidirectional signal transmission at data transfer rates of up to 480 MBPS. The cable maintains a bend radius of 1.85 in (47 mm) and a cable diameter of 0.19 in (4.7 mm). It is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C) and humidity levels between 20% and 80% RH (non-condensing). This SKU is the white version of the series; for a black alternative, refer to the CG52106 replacement part.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 3.3 ft (1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.14 lbs (0.1 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | White |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120190035 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum total length I can use with this extension?
This extension is not for use beyond a total extended single length of 5 meters. For longer runs or high-powered devices, use the #39978 5m USB A Male to A Female Active Extension Cable.
What is the data transfer rate for the CG19003?
The CG19003 supports USB 2.0 technology with a data transfer rate of 480 MBPS.
How does the CG19003 compare to the CG52106?
The CG19003 is the white version of this cable series, whereas the CG52106 is the black replacement model.
What is the operating temperature range for this USB cable?
The cable is rated for operation within a temperature range of -4°F to 176°F (-20°C to 80°C).
Does this cable support bidirectional data transfer?
Yes, the CG19003 features bidirectional signal transmission.
