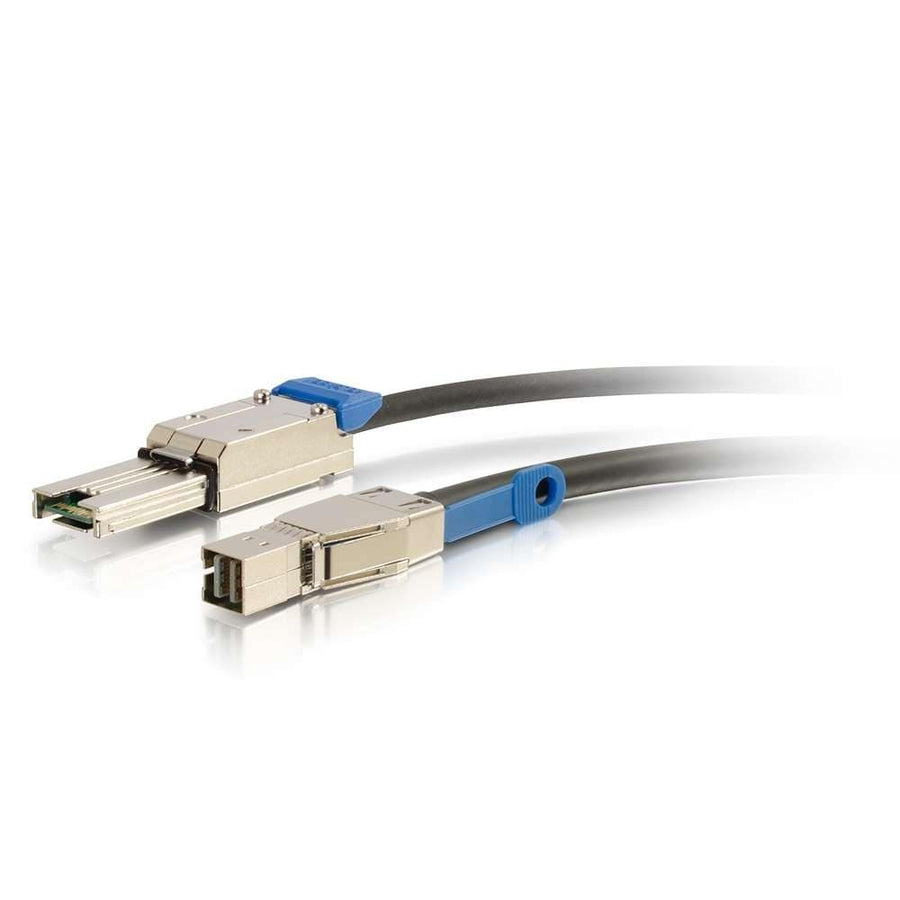

3.3ft (1m) Mini-SAS HD to Mini-SAS Cable
3.3 ft (1 m) Mini-SAS HD to Mini-SAS Direct Attach Cable (DAC) supporting data transfer rates up to 12 Gbps
The C2G CG54255 is a 3.3 ft (1 m) Direct Attach Cable (DAC) designed to connect storage area network (SAN) devices, hard drives, or other SAS interface devices. This cable facilitates connectivity between an SFF-8644 Mini-SAS HD connector and an SFF-8088 Mini-SAS connector. Engineered for high-performance environments including servers, workstations, and desktops, the cable supports bit rates of 12 Gbps. The construction features 24AWG silver plated solid copper conductors, which helps maintain the necessary bandwidth across the full 1 m length. This cable is TAA compliant and features a flexible PVC jacket with an outer diameter of 0.31 in (7.8 mm). The differential impedance is rated at 100 ± 5 #@TDR to ensure signal integrity in high-speed data environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.31 in (7.8 mm) |
| Cable Length | 3.3 ft (1 m) |
| Cable Type | Direct Attach Cable (DAC) |
| Color | Black |
| Connector 1 | (1) Mini SAS(1) Mini SAS |
| Connector 2 | (1) Mini SAS HD(1) Mini SAS HD |
| Jacket Rating | Standard / Non-Rated |
All other specifications 5
| Product Type | Cable |
| TAA Compliant | Yes |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | Flexible PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum data transfer speed of the CG54255?
The CG54255 supports bit rates up to 12 Gbps for high-performance networking and storage applications.
Will this cable work for connecting a SAN device to a server?
Yes, this DAC is designed to connect SAN devices, hard drives, or other SAS interface devices via the Mini-SAS HD and Mini-SAS connectors.
Is the CG54255 TAA compliant?
Yes, this product is TAA compliant and carries CE, RoHS, and REACH certifications.
What are the physical dimensions of this cable?
This cable has a length of 3.3 ft (1 m), a cable diameter of 0.31 in (7.8 mm), and a minimum bend radius of 3.54 in (90 mm).
Are there other lengths available in this series?
Yes, this series includes a 6.6 ft variant in addition to this 3.3 ft model.
